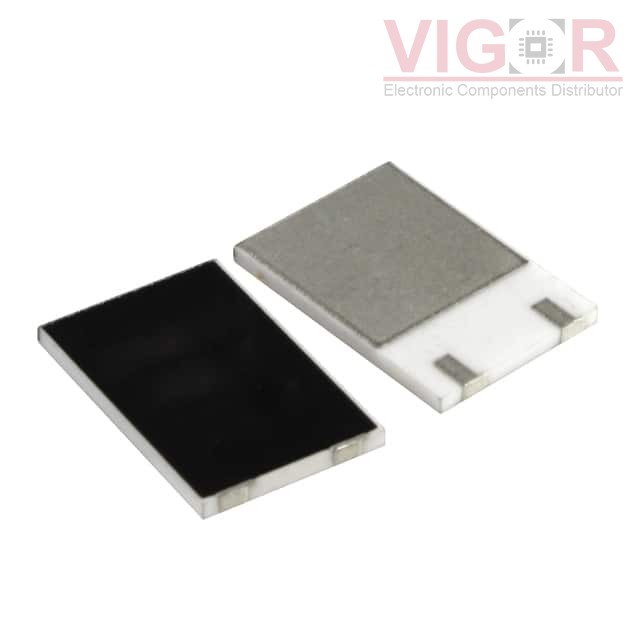

PFC10-680RF1

Part No :: PFC10-680RF1

Manufacturer: Riedon

VIGOR # :: 335759

Description: RES SMD 680 OHM 1% 25W PFC10

Catalog: Chip Resistors-Surface Mount

DataSheet: PFC10-680RF1 PDF

Country of origin: -

Date code: -

PFC10-680RF1 Specifications

Type	Description
Series:	PFC
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	680 Ohms
Tolerance:	±1%
Power (Watts):	25W
Composition:	Thick Film
Features:	Current Sense, Pulse Withstanding
Temperature Coefficient:	±100ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	PFC10 (TO-126 SMT)
Supplier Device Package:	PFC10
Ratings:	-
Size / Dimension:	0.472" L x 0.323" W (12.00mm x 8.20mm)
Height - Seated (Max):	0.041" (1.05mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 20 - Jan 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.67~~	~~$1.67~~
500	~~$1.59~~	~~$795.31~~

Current price of PFC10-680RF1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

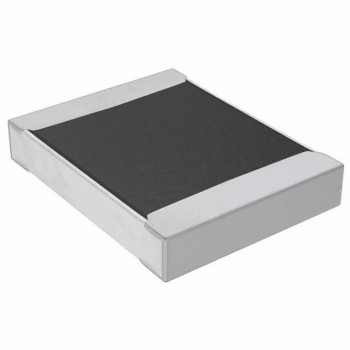

RMCF1210JT3R00

RES 3 OHM 5% 1/2W 1210

RK73H2ATTD9101F

RES 9.1K OHM 1% 1/4W 0805

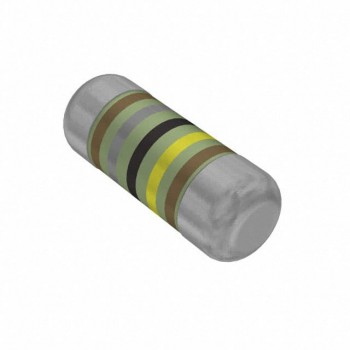

SMM02040C1804FB300
