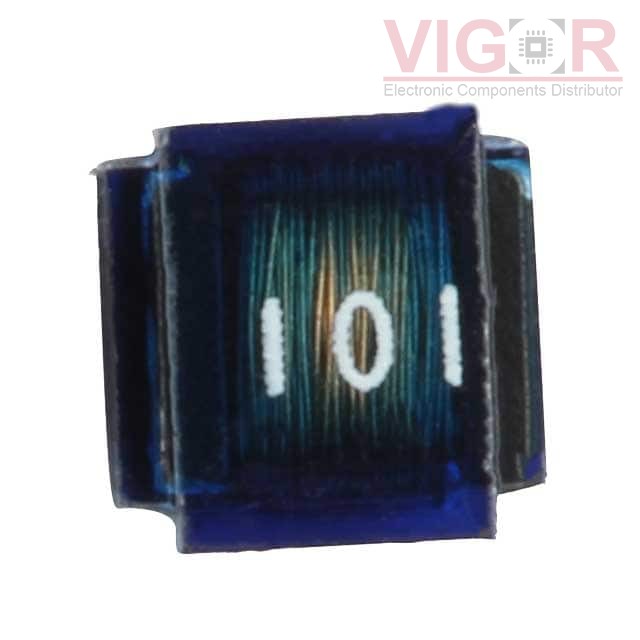

WCL2520-220-R

Part No :: WCL2520-220-R

Manufacturer: PowerStor (Eaton)

VIGOR # :: 1598698

Description: FIXED IND 22UH 105MA 3.9 OHM SMD

Catalog: Fixed Inductors

DataSheet: WCL2520-220-R PDF

Country of origin: -

Date code: -

WCL2520-220-R Specifications

Type	Description
Series:	WCL2520
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	22 µH
Tolerance:	±5%
Current Rating (Amps):	105 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.9Ohm Max
Q @ Freq:	10 @ 2.52MHz
Frequency - Self Resonant:	18MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008
Size / Dimension:	0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max):	0.083" (2.10mm)
