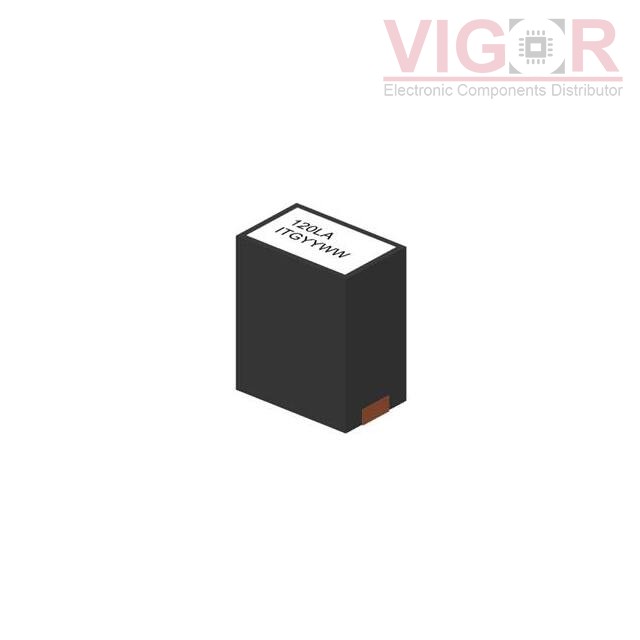

L101247A-70L

Image is for reference,
please contact us to get the real picture

Part No :: L101247A-70L

Manufacturer: ITG Electronics, Inc.

Description: 0.07UH, 15%, 0.125MOHM, 180AMP M

Catalog: Fixed Inductors

DataSheet: L101247A-70L PDF

Availability: 0 pieces

Unit Price: ~~$1.50000~~

Current price of L101247A-70L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

L101247A-70L Specifications

Type	Description
Series:	L101247A
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	70 nH
Tolerance:	±15%
Current Rating (Amps):	78 A
Current - Saturation (Isat):	180A
Shielding:	Unshielded
DC Resistance (DCR):	0.125mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 130°C
Inductance Frequency - Test:	500 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.252" W (10.00mm x 6.40mm)
Height - Seated (Max):	0.472" (12.00mm)
