LPS3015-683MRC

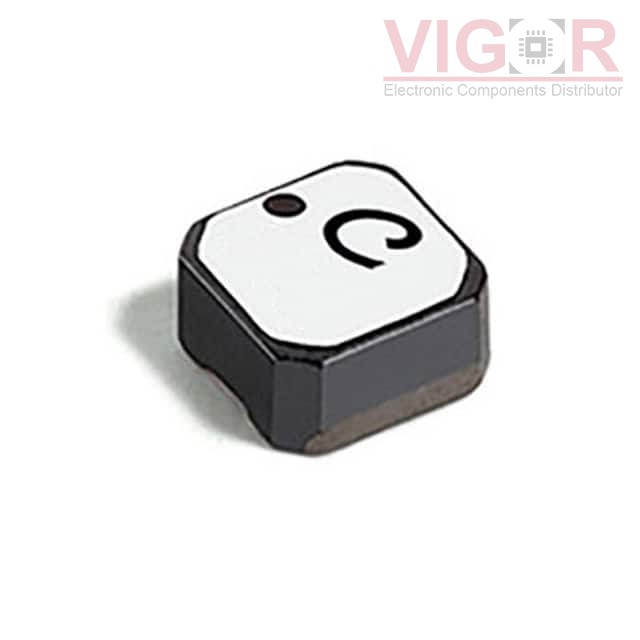

Image is for reference,
please contact us to get the real picture

Part No :: LPS3015-683MRC

Manufacturer: COILCRAFT

Description: SHIELDED POWER INDUCTORS, 68UH

Catalog: Fixed Inductors

DataSheet: LPS3015-683MRC PDF

Availability: 21290 pieces

Unit Price: ~~$1.11000~~

Current price of LPS3015-683MRC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LPS3015-683MRC Specifications

Type	Description
Series:	LPS3015
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	330 mA
Current - Saturation (Isat):	310mA
Shielding:	Shielded
DC Resistance (DCR):	2.35Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	14MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.116" L x 0.116" W (2.95mm x 2.95mm)
Height - Seated (Max):	0.059" (1.50mm)

Please confirm the specifications of the products when ordering.
