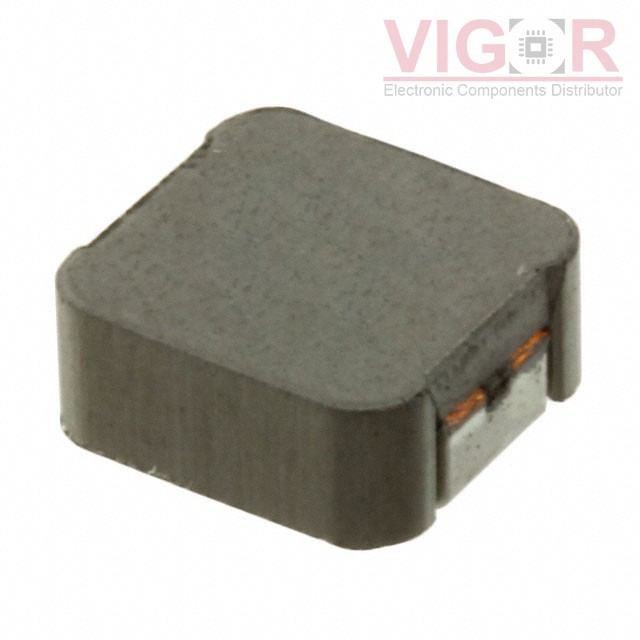

HA72E-06R47LFTR13

Image is for reference,
please contact us to get the real picture

Part No :: HA72E-06R47LFTR13

Manufacturer: TT Electronics

Description: FIXED IND 470NH 16.1A 4.2 MOHM

Catalog: Fixed Inductors

DataSheet: HA72E-06R47LFTR13 PDF

Availability: 3740 pieces

Unit Price: ~~$1.44000~~

Current price of HA72E-06R47LFTR13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HA72E-06R47LFTR13 Specifications

Type	Description
Series:	HA72E-06
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Discontinued at Digi-Key
Type:	Molded
Material - Core:	-
Inductance:	470 nH
Tolerance:	±20%
Current Rating (Amps):	16.1 A
Current - Saturation (Isat):	19A
Shielding:	Unshielded
DC Resistance (DCR):	4.2mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Supplier Device Package:	-
Size / Dimension:	0.285" L x 0.268" W (7.23mm x 6.80mm)
Height - Seated (Max):	0.118" (3.00mm)
