AX97-101R5

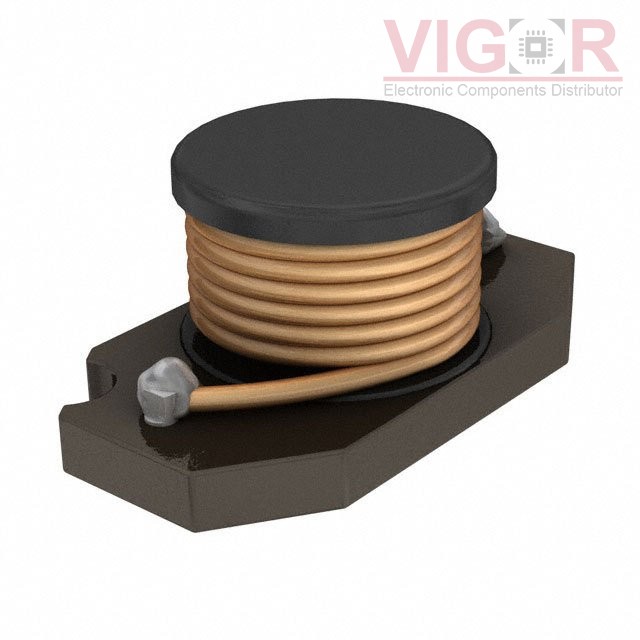

Product image
Product thumb
Part No :

AX97-101R5

Manufacturer
Triad Magnetics
VIGOR # :

1605163

Description
FIXED IND 1.5UH 2.8A 50 MOHM SMD
Catalog
Fixed Inductors
DataSheet
AX97-101R5 PDF
Country of origin
-
Date code
-
ads
AX97-101R5 Specifications
Type Description
Series:AX97
Package:Box
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:1.5 µH
Tolerance:±20%
Current Rating (Amps):2.8 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):50mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.287" L x 0.188" W (7.30mm x 4.78mm)
Height - Seated (Max):0.127" (3.23mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.81 $0.81
500 $0.80 $399.96

Current price of AX97-101R5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
