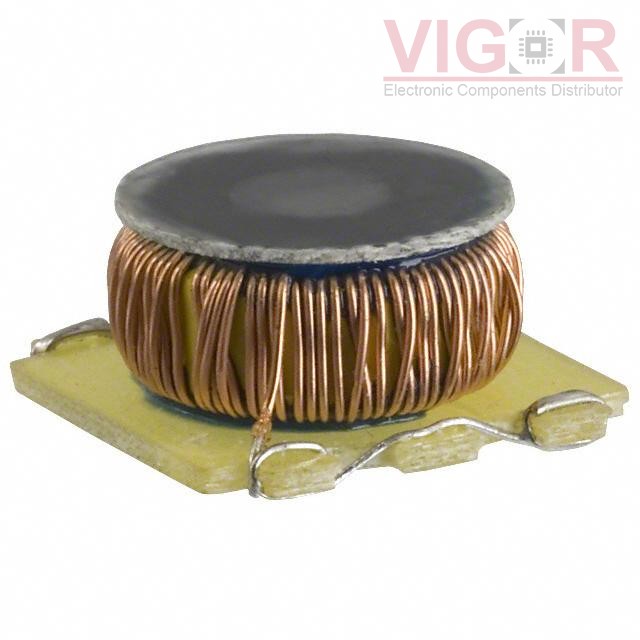

SWS-1.54-77

Image is for reference,
please contact us to get the real picture

Part No :: SWS-1.54-77

Manufacturer: Amgis

Description: FIXED IND 77UH 1.54A 200 MOHM

Catalog: Fixed Inductors

DataSheet: SWS-1.54-77 PDF

Availability: 0 pieces

Unit Price: ~~$3.32860~~

Current price of SWS-1.54-77 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SWS-1.54-77 Specifications

Type	Description
Series:	SW
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	77 µH
Tolerance:	±20%
Current Rating (Amps):	1.54 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	200mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max):	0.325" (8.25mm)
