SM2511-1R5MHF

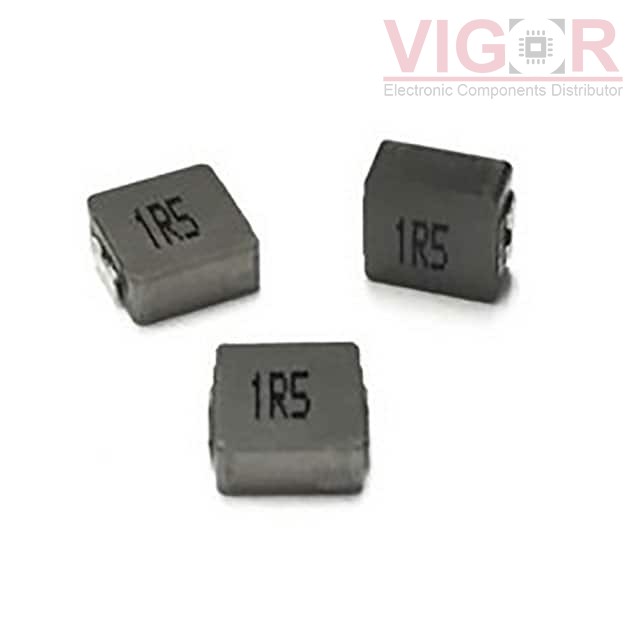

Image is for reference,
please contact us to get the real picture

Part No :: SM2511-1R5MHF

Manufacturer: ITG Electronics, Inc.

Description: 1.5UH, 20%, 14MOHM, 18AMP MAX. S

Catalog: Fixed Inductors

DataSheet: SM2511-1R5MHF PDF

Availability: 20000 pieces

Unit Price: ~~$0.70000~~

Current price of SM2511-1R5MHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SM2511-1R5MHF Specifications

Type	Description
Series:	SM2511
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	1.5 µH
Tolerance:	±20%
Current Rating (Amps):	9 A
Current - Saturation (Isat):	18A
Shielding:	Shielded
DC Resistance (DCR):	15mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.263" L x 0.255" W (6.68mm x 6.47mm)
Height - Seated (Max):	0.118" (3.00mm)
