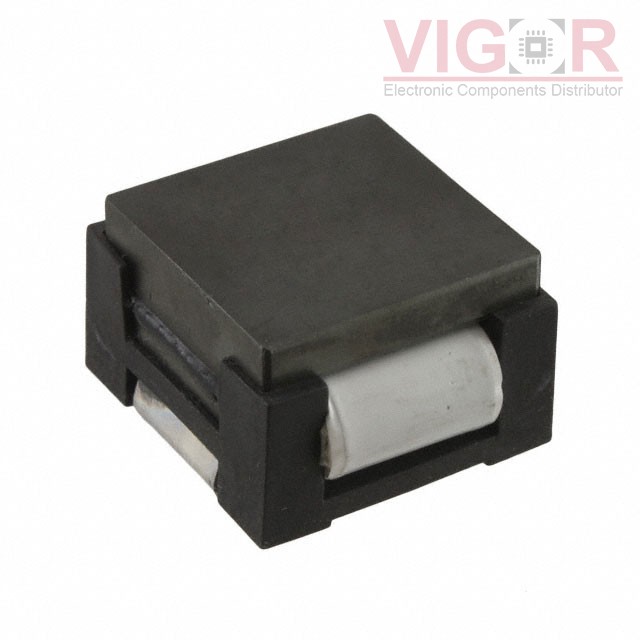

HC3-2R2-R

Part No :: HC3-2R2-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 2.2UH 55.5A 0.7 MOHM

Catalog: Fixed Inductors

DataSheet: HC3-2R2-R PDF

Availability: 70 pieces

Current price of HC3-2R2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HC3-2R2-R Specifications

Type	Description
Series:	HC3
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	55.5 A
Current - Saturation (Isat):	60A
Shielding:	Unshielded
DC Resistance (DCR):	0.7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	300 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	1.181" L x 0.996" W (30.00mm x 25.30mm)
Height - Seated (Max):	0.689" (17.50mm)
