HA65A-25156R8LF

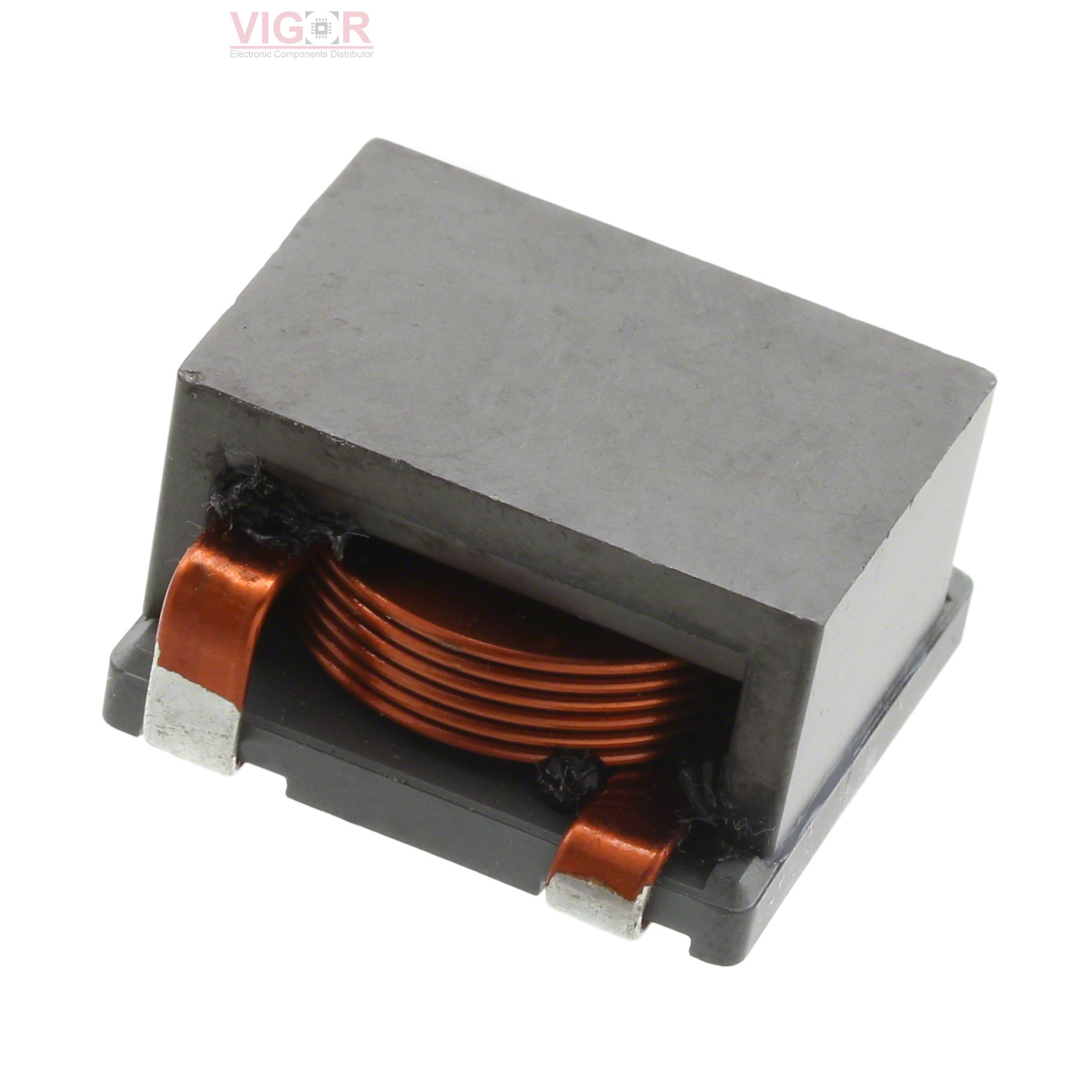

Image is for reference,
please contact us to get the real picture

Part No :: HA65A-25156R8LF

Manufacturer: TT Electronics

Description: FIXED IND 6.8UH 2.6 MOHM SMD

Catalog: Fixed Inductors

DataSheet: HA65A-25156R8LF PDF

Availability: 232 pieces

Unit Price: ~~$6.69000~~

Current price of HA65A-25156R8LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HA65A-25156R8LF Specifications

Type	Description
Series:	HA65A
Package:	Tray
Part Status:	Discontinued at Digi-Key
Type:	Wirewound
Material - Core:	-
Inductance:	6.8 µH
Tolerance:	±10%
Current Rating (Amps):	-
Current - Saturation (Isat):	46A
Shielding:	Unshielded
DC Resistance (DCR):	2.6mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	17MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	1.043" L x 1.043" W (26.50mm x 26.50mm)
Height - Seated (Max):	0.610" (15.50mm)
