P1174.223NLT

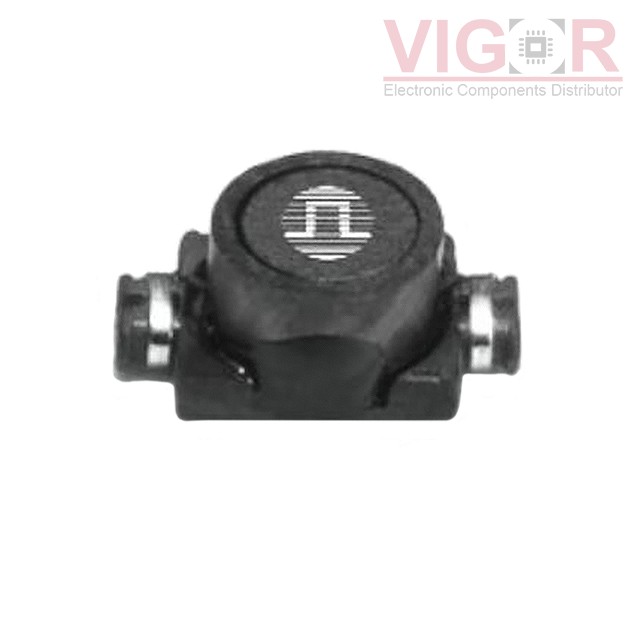

Image is for reference,
please contact us to get the real picture

Part No :: P1174.223NLT

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 22UH 500MA 120 MOHM

Catalog: Fixed Inductors

DataSheet: P1174.223NLT PDF

Availability: 0 pieces

Unit Price: ~~$0.82500~~

Current price of P1174.223NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

P1174.223NLT Specifications

Type	Description
Series:	P1174NL
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	500mA
Shielding:	Shielded
DC Resistance (DCR):	120mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	20MHz
Ratings:	-
Operating Temperature:	-40°C ~ 130°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.265" L x 0.175" W (6.73mm x 4.45mm)
Height - Seated (Max):	0.110" (2.79mm)
