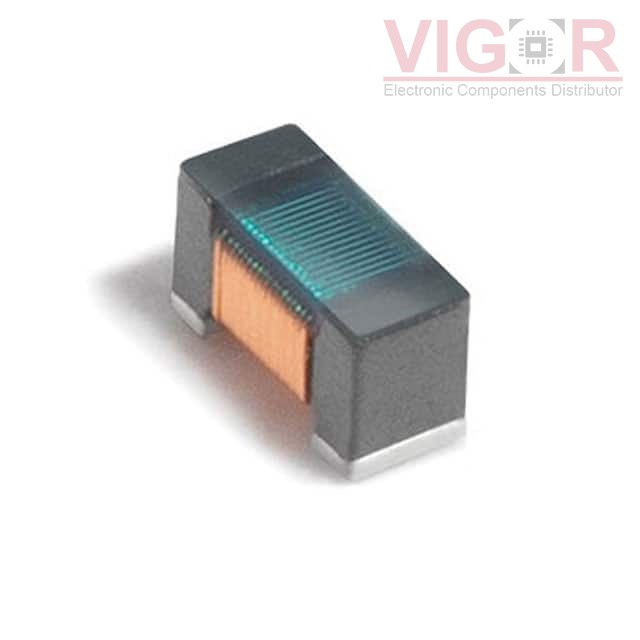

0402DF-560XJRW

Part No :: 0402DF-560XJRW

Manufacturer: COILCRAFT

VIGOR # :: 1640197

Description: WIREWOUND FERRITE BEAD 56NH

Catalog: Fixed Inductors

DataSheet: 0402DF-560XJRW PDF

Country of origin: -

Date code: -

0402DF-560XJRW Specifications

Type	Description
Series:	0402DF
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	56 nH
Tolerance:	±5%
Current Rating (Amps):	1.2 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	61mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	2.2GHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402
Size / Dimension:	0.044" L x 0.026" W (1.11mm x 0.66mm)
Height - Seated (Max):	0.026" (0.66mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 131

Shipped from

HK warehouse

Expected Shipping Date

Mar 31 - Apr 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.3000~~	~~$1.30~~

Current price of 0402DF-560XJRW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ASPI-0602S-3R9M-T

FIXED IND 3.9UH 2.6A 27 MOHM SMD

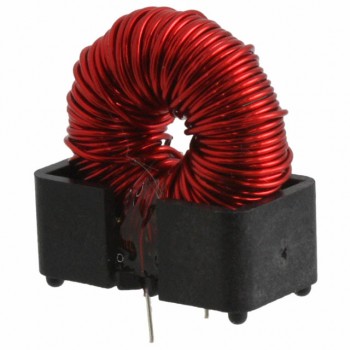

PE-53935NL
