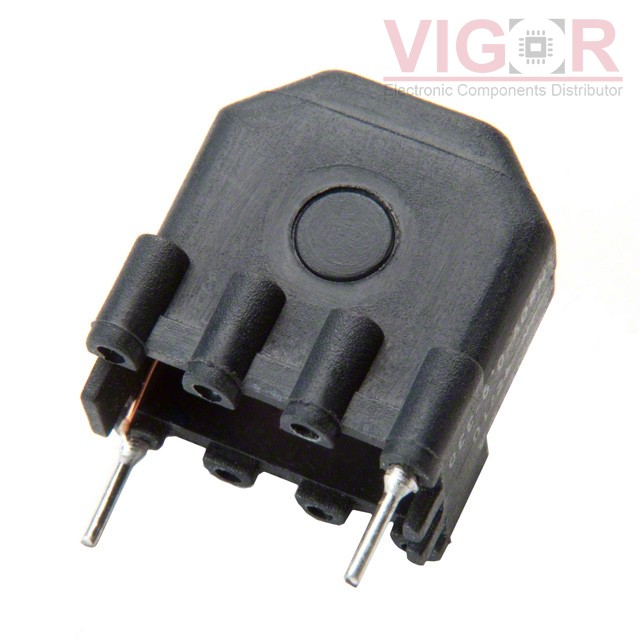

SH50V-0.85-680

Part No :: SH50V-0.85-680

Manufacturer: Amgis

VIGOR # :: 1644652

Description: FIXED IND 680UH 850MA 1.25 OHM

Catalog: Fixed Inductors

DataSheet: SH50V-0.85-680 PDF

Country of origin: -

Date code: -

SH50V-0.85-680 Specifications

Type	Description
Series:	SH50
Package:	Tray
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	680 µH
Tolerance:	±20%
Current Rating (Amps):	850 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.25Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical
Supplier Device Package:	-
Size / Dimension:	0.709" L x 0.512" W (18.00mm x 13.00mm)
Height - Seated (Max):	0.709" (18.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 13 - Jan 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.11~~	~~$4.11~~
200	~~$4.11~~	~~$822.80~~

Current price of SH50V-0.85-680 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

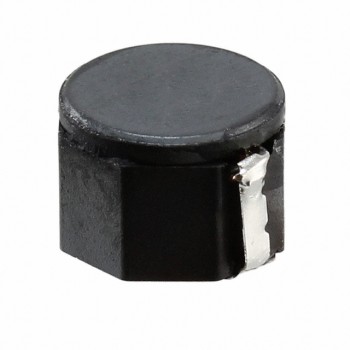

CDRH8D58/LDNP-470NC

FIXED IND 47UH 2.2A 90.5 MOHM

NRS5020T220MMGJ

FIXED IND 22UH 1A 312 MOHM SMD

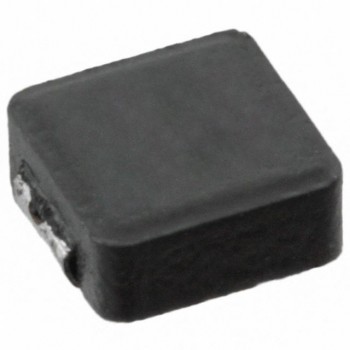

74437324068
