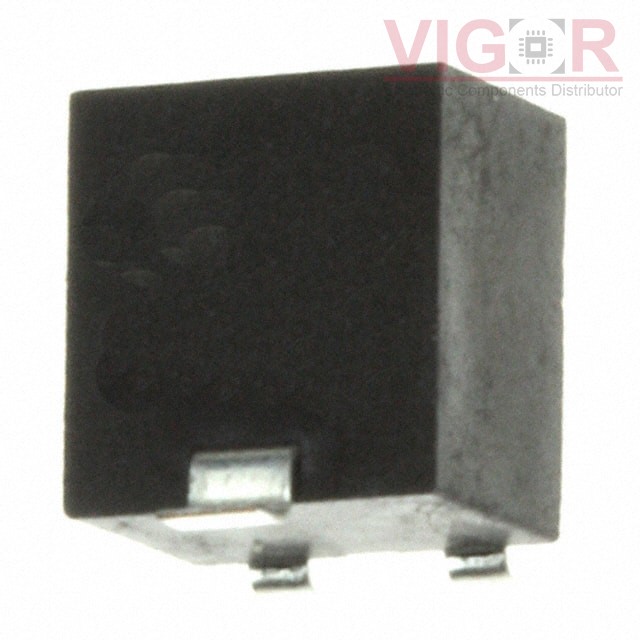

SM-42TX503

Part No :: SM-42TX503

Manufacturer: Nidec Copal Electronics

VIGOR # :: 1650541

Description: TRIMMER 50K OHM 0.25W GW TOP ADJ

Catalog: Trimmer Potentiometers

DataSheet: SM-42TX503 PDF

Country of origin: -

Date code: -

SM-42TX503 Specifications

Type	Description
Series:	SM42
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Resistance:	50 kOhms
Power (Watts):	0.25W, 1/4W
Tolerance:	±10%
Temperature Coefficient:	±100ppm/°C
Number of Turns:	11
Adjustment Type:	Top Adjustment
Resistive Material:	Cermet
Mounting Type:	Surface Mount
Termination Style:	Gull Wing
Size / Dimension:	Square - 0.189" L x 0.138" W x 0.201" H (4.80mm x 3.50mm x 5.10mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 531

Shipped from

HK warehouse

Expected Shipping Date

Jun 20 - Jun 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.2300~~	~~$3.23~~
250	~~$2.2756~~	~~$568.91~~
500	~~$1.8799~~	~~$939.93~~
750	~~$1.8304~~	~~$1 372.79~~
1250	~~$1.7809~~	~~$2 226.15~~
2500	~~$1.5336~~	~~$3 833.92~~
6250	~~$1.4841~~	~~$9 275.62~~

Current price of SM-42TX503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
