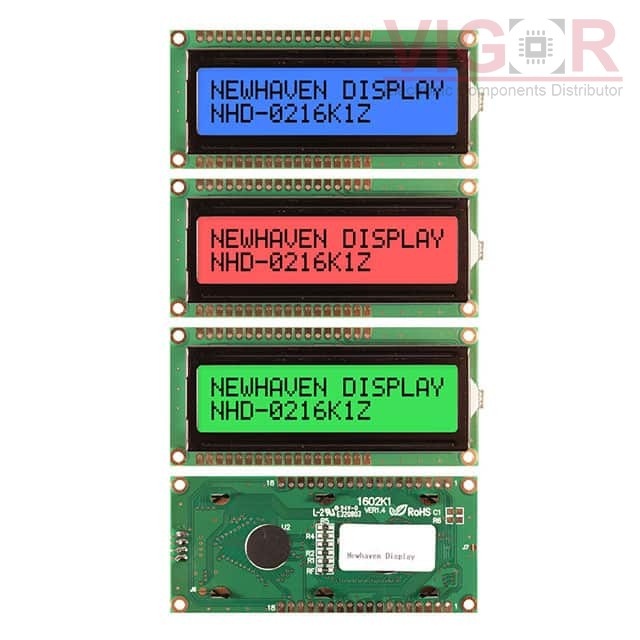

NHD-0216K1Z-FS(RGB)-FBW-REV1

Part No :: NHD-0216K1Z-FS(RGB)-FBW-REV1

Manufacturer: Newhaven Display, Intl.

VIGOR # :: 1666758

Description: LCD MOD 32DIG 16X2 TRANSFL R/G/B

Catalog: Display Modules - LCD, OLED Character and Numeric

DataSheet: NHD-0216K1Z-FS(RGB)-FBW-REV1 PDF

Country of origin: -

Date code: -

NHD-0216K1Z-FS(RGB)-FBW-REV1 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	32
Display Format:	16 x 2
Character Format:	5 x 8 Dots
Display Type:	FSTN - Film Super-Twisted Nematic
Display Mode:	Transflective
Character Size:	5.23mm H x 3.00mm W
Outline L x W x H:	80.00mm x 36.00mm x 13.00mm
Viewing Area:	64.50mm L x 16.40mm W
Backlight:	LED - Red/Green/Blue
Voltage - Supply:	4.7V ~ 5.5V
Dot Size:	0.56mm W x 0.61mm H
Interface:	Parallel
Controller Type:	SPLC780D OR ST7066U
Operating Temperature:	-20°C ~ 70°C
Text Color:	Black
Background Color:	Red/Green/Blue

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 466

Shipped from

HK warehouse

Expected Shipping Date

Jan 21 - Jan 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$15.20~~	~~$15.20~~
5	~~$14.29~~	~~$71.44~~
10	~~$13.38~~	~~$133.76~~
50	~~$12.62~~	~~$630.80~~
100	~~$12.01~~	~~$1 200.80~~
250	~~$11.40~~	~~$2 850.00~~
500	~~$10.94~~	~~$5 472.01~~

Current price of NHD-0216K1Z-FS(RGB)-FBW-REV1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
