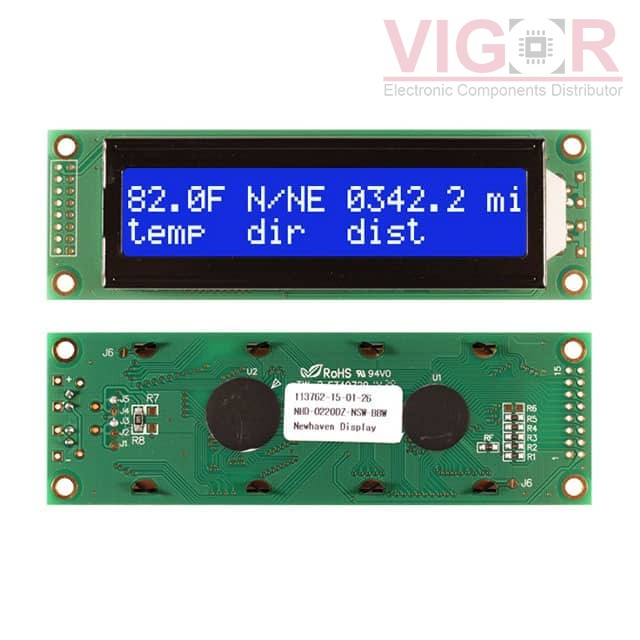

NHD-0220DZ-NSW-BBW

Part No :: NHD-0220DZ-NSW-BBW

Manufacturer: Newhaven Display, Intl.

VIGOR # :: 1666762

Description: LCD MOD 40DIG 20X2 TRANSMISV WHT

Catalog: Display Modules - LCD, OLED Character and Numeric

DataSheet: NHD-0220DZ-NSW-BBW PDF

Country of origin: -

Date code: -

NHD-0220DZ-NSW-BBW Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Number of Characters:	40
Display Format:	20 x 2
Character Format:	5 x 8 Dots
Display Type:	STN - Super-Twisted Nematic
Display Mode:	Transmissive
Character Size:	5.95mm H x 3.20mm W
Outline L x W x H:	116.00mm x 37.00mm x 13.50mm
Viewing Area:	83.00mm L x 18.60mm W
Backlight:	LED - White
Voltage - Supply:	4.7V ~ 5.5V
Dot Size:	0.60mm W x 0.65mm H
Interface:	Parallel
Controller Type:	SPLC780D OR ST7066U
Operating Temperature:	-20°C ~ 70°C
Text Color:	White
Background Color:	Blue

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 04 - May 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$15.8700~~	~~$15.87~~
5	~~$14.9189~~	~~$74.59~~
10	~~$13.9656~~	~~$139.66~~
50	~~$13.1722~~	~~$658.61~~
100	~~$12.5374~~	~~$1 253.74~~
250	~~$11.9025~~	~~$2 975.63~~
500	~~$11.4265~~	~~$5 713.23~~

Current price of NHD-0220DZ-NSW-BBW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

C161B-BW-LW65

16X1 STN BLUE CHARACTER LCD

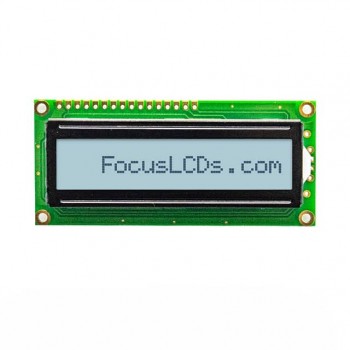

C161A-FTW-LW65

16X1 FSTN GRAYCHARACTER LCD

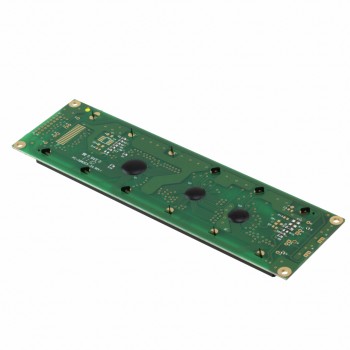

EA E202-CNLW
