AM2520SRC09

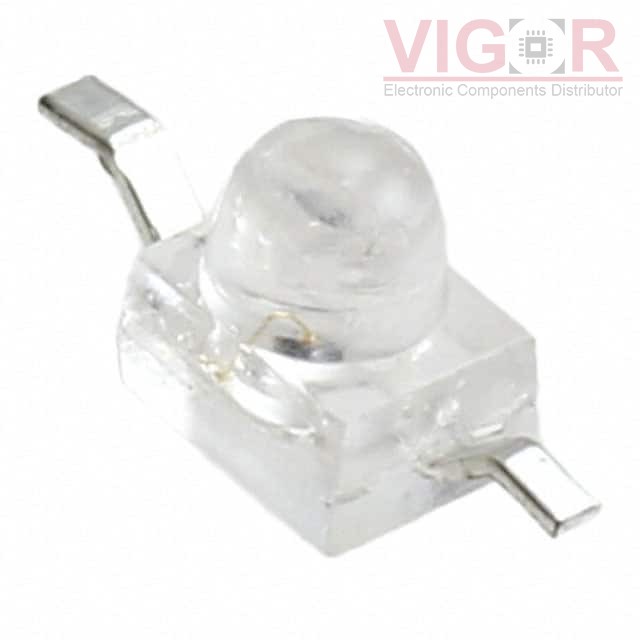

Image is for reference,
please contact us to get the real picture

Part No :: AM2520SRC09

Manufacturer: Kingbright

Description: LED RED CLEAR SMD BOTTOM ENTRY

Catalog: LED Indication - Discrete

DataSheet: AM2520SRC09 PDF

Availability: 16710 pieces

Unit Price: ~~$0.58000~~

Current price of AM2520SRC09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AM2520SRC09 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	600mcd
Lens Style:	Round with Domed Top
Lens Size:	1.90mm Dia
Voltage - Forward (Vf) (Typ):	1.85V
Current - Test:	20mA
Viewing Angle:	20°
Mounting Type:	Surface Mount, Bottom Entry
Wavelength - Dominant:	640nm
Wavelength - Peak:	655nm
Features:	-
Package / Case:	2-SMD, Z-Bend
Supplier Device Package:	SMD
Size / Dimension:	2.50mm L x 2.00mm W
Height (Max):	2.90mm

Please confirm the specifications of the products when ordering.
