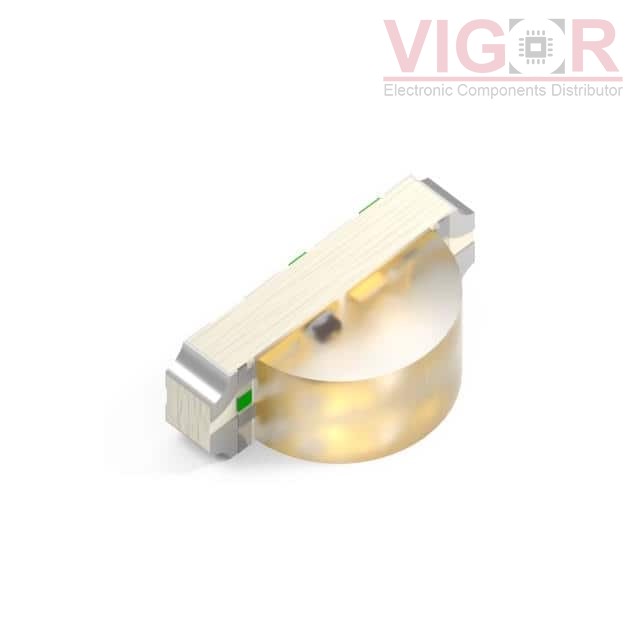

XZCMEDGCBD56W

Part No :: XZCMEDGCBD56W

Manufacturer: SunLED

VIGOR # :: 1671619

Description: 3.0X1.0MM LC RGB RIGHT ANGLE SMD

Catalog: LED Indication - Discrete

DataSheet: XZCMEDGCBD56W PDF

Country of origin: -

Date code: -

XZCMEDGCBD56W Specifications

Type	Description
Series:	Ultra Low Current
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red, Green, Blue (RGB)
Configuration:	Common Anode
Lens Color:	Colorless
Lens Transparency:	Clear
Millicandela Rating:	14mcd Red, 59mcd Green, 9mcd Blue
Lens Style:	Rectangle with Domed Top
Lens Size:	2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ):	1.8V Red, 2.65V Green, 2.65V Blue
Current - Test:	2mA
Viewing Angle:	150°
Mounting Type:	Surface Mount, Right Angle
Wavelength - Dominant:	621nm Red, 525nm Green, 465nm Blue
Wavelength - Peak:	630nm Red, 515nm Green, 460nm Blue
Features:	-
Package / Case:	4-SMD, No Lead
Supplier Device Package:	4-SMD
Size / Dimension:	3.00mm L x 1.50mm W
Height (Max):	1.20mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1196

Shipped from

HK warehouse

Expected Shipping Date

Sep 29 - Oct 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.8300~~	~~$0.83~~

Current price of XZCMEDGCBD56W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
