CL-505S-X-SD-T

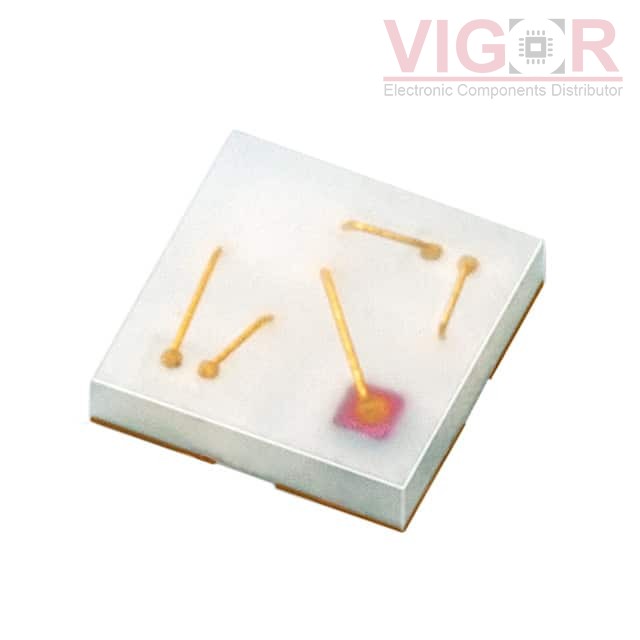

Image is for reference,
please contact us to get the real picture

Part No :: CL-505S-X-SD-T

Manufacturer: Citizen Electronics Co., Ltd.

Description: LED TRI TOP FIRING 1.0 X 1.0

Catalog: LED Indication - Discrete

DataSheet: CL-505S-X-SD-T PDF

Availability: 25303 pieces

Unit Price: ~~$0.81000~~

Current price of CL-505S-X-SD-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CL-505S-X-SD-T Specifications

Type	Description
Series:	CL-505S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red, Green, Blue (RGB)
Configuration:	Common Anode
Lens Color:	-
Lens Transparency:	-
Millicandela Rating:	40mcd Red, 220mcd Green, 65mcd Blue
Lens Style:	Square with Flat Top
Lens Size:	1.00mm
Voltage - Forward (Vf) (Typ):	1.85V Red, 2.7V Green, 2.75V Blue
Current - Test:	5mA Red, 5mA Green, 5mA Blue
Viewing Angle:	-
Mounting Type:	Surface Mount
Wavelength - Dominant:	615nm Red, 530nm Green, 470nm Blue
Wavelength - Peak:	-
Features:	-
Package / Case:	0404 (1010 Metric)
Supplier Device Package:	-
Size / Dimension:	1.00mm L x 1.00mm W
Height (Max):	0.26mm
