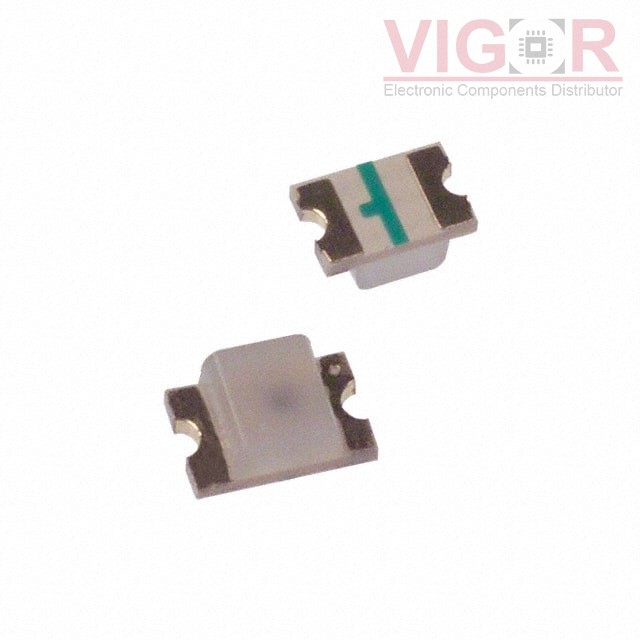

HSMS-C170

Part No :: HSMS-C170

Manufacturer: Broadcom

VIGOR # :: 1677308

Description: LED RED DIFFUSED CHIP SMD

Catalog: LED Indication - Discrete

DataSheet: HSMS-C170 PDF

Country of origin: -

Date code: -

HSMS-C170 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Color:	Red
Configuration:	Standard
Lens Color:	White
Lens Transparency:	Diffused
Millicandela Rating:	10mcd
Lens Style:	Rectangle with Flat Top
Lens Size:	1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ):	2.1V
Current - Test:	20mA
Viewing Angle:	170°
Mounting Type:	Surface Mount
Wavelength - Dominant:	626nm
Wavelength - Peak:	630nm
Features:	-
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	Chip LED
Size / Dimension:	2.00mm L x 1.25mm W
Height (Max):	0.80mm

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 79782

Shipped from

HK warehouse

Expected Shipping Date

Jan 13 - Jan 17 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.37~~	~~$0.37~~
4000	~~$0.08~~	~~$339.36~~
8000	~~$0.08~~	~~$610.88~~
12000	~~$0.07~~	~~$814.44~~
28000	~~$0.06~~	~~$1 781.64~~
100000	~~$0.06~~	~~$5 515.00~~

Current price of HSMS-C170 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SML-Z14PTT86C

LED GREEN CLEAR 3528 SMD

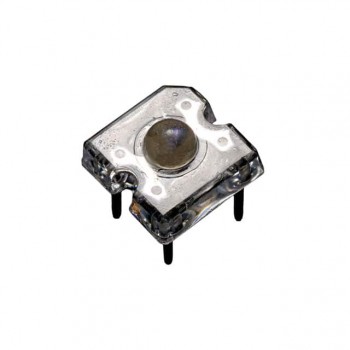

CP41B-RDS-CL0P0EE4

LED RED CLEAR P4 T/H

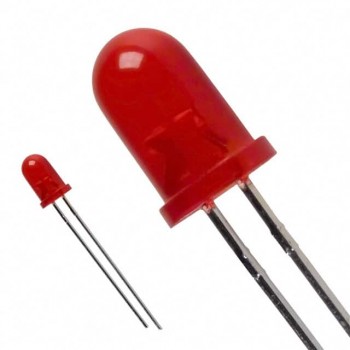

SSL-LX5093BID
