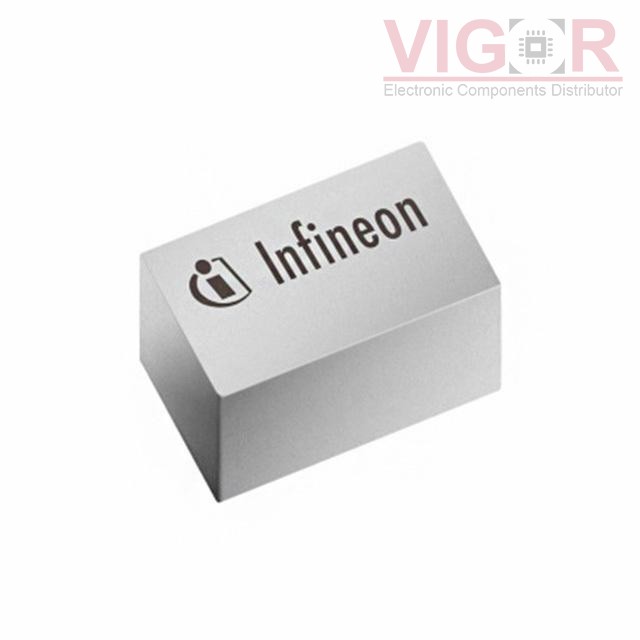

ESD253B1W0201E6327XTSA1

Part No :: ESD253B1W0201E6327XTSA1

Manufacturer: IR (Infineon Technologies)

Description: TVS DIODES

Catalog: TVS - Diodes

DataSheet: ESD253B1W0201E6327XTSA1 PDF

Availability: 14685 pieces

Current price of ESD253B1W0201E6327XTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESD253B1W0201E6327XTSA1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	-
Bidirectional Channels:	1
Voltage - Reverse Standoff (Typ):	24V
Voltage - Breakdown (Min):	-
Voltage - Clamping (Max) @ Ipp:	30V (Typ)
Current - Peak Pulse (10/1000µs):	3A (8/20µs)
Power - Peak Pulse:	90W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	2.8pF @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	WLL-2-3
