106S

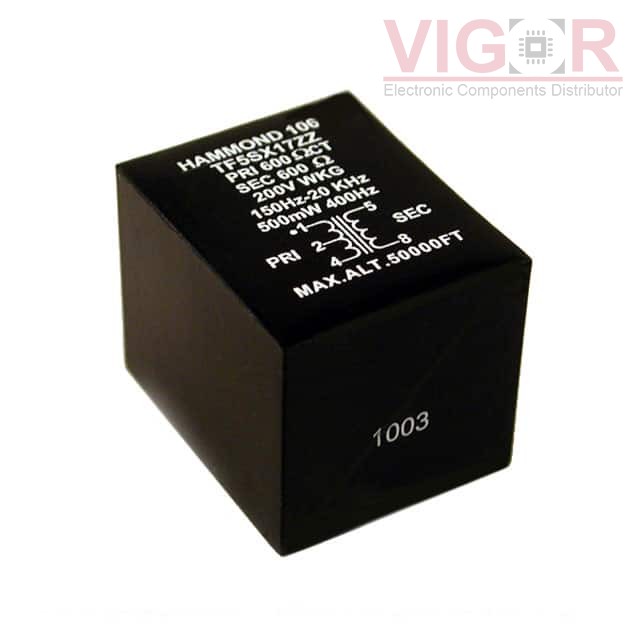

Product image
Product thumb
Part No :

106S

Manufacturer
Hammond Manufacturing
VIGOR # :

1982486

Description
TRANSFORMER AUDIO 100CT/3.2
Catalog
Audio Transformers
DataSheet
106S PDF
Country of origin
-
Date code
-
ads
106S Specifications
Type Description
Series:106
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:-
Impedance - Primary (Ohms):100CT
Impedance - Secondary (Ohms):3.2
DC Resistance (DCR) - Primary:4.4Ohm
DC Resistance (DCR) - Secondary:300mOhm
Transformer Type:Miniature Epoxy Potted
Frequency Range:170Hz
Frequency Response:-1dB
Voltage - Isolation:200V
Insertion Loss:1dB
Return Loss:-
Power Level:1.5W
Operating Temperature:-
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.080" L x 0.880" W (27.43mm x 22.35mm)
Height - Seated (Max):0.950" (24.13mm)
Termination Style:PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 14
Shipped from
HK warehouse
Expected Shipping Date
Jan 20 - Jan 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $27.34 $27.34
10 $24.12 $241.20
25 $23.32 $582.90
50 $20.90 $1 045.20
100 $20.10 $2 010.00

Current price of 106S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
