L01-6301

Image is for reference,
please contact us to get the real picture

Part No :: L01-6301

Manufacturer: Amgis

Description: PWR XFMR TORO 1.6VA TH

Catalog: Power Transformers

DataSheet: L01-6301 PDF

Availability: 32 pieces

Unit Price: ~~$15.08000~~

Current price of L01-6301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

L01-6301 Specifications

Type	Description
Series:	L01
Package:	Tray
Part Status:	Active
Type:	Toroidal
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 9V, Series 18V
Current - Output (Max):	Parallel 178mA, Series 89mA
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	1.6VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	39.60mm L x 39.60mm W
Height - Seated (Max):	18.50mm
Voltage - Isolation:	4000Vrms
Weight:	0.177 lb (80.29 g)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 32

Shipped from

HK warehouse

Expected Shipping Date

Nov 17 - Nov 21 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$15.08000	$15.08
10	$11.13600	$111.36
35	$10.27943	$359.78005
70	$9.93686	$695.5802
105	$9.66276	$1014.5898
280	$9.52568	$2667.1904
525	$9.42288	$4947.012
1015	$9.25155	$9390.32325

Hot Products

XF-00500-2024

PWR XFMR TORO 500VA CHAS MT

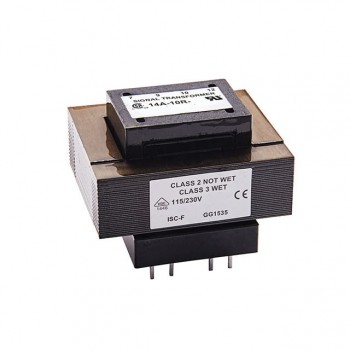

14A-5.0R-20

PWR XFMR LAMINATED 5VA TH

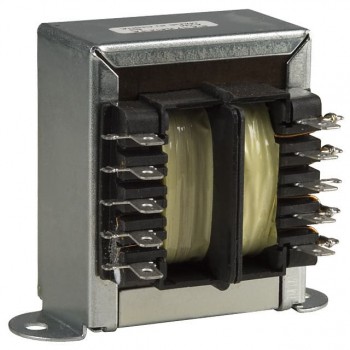

VPS28-1500-B
