G506

G506

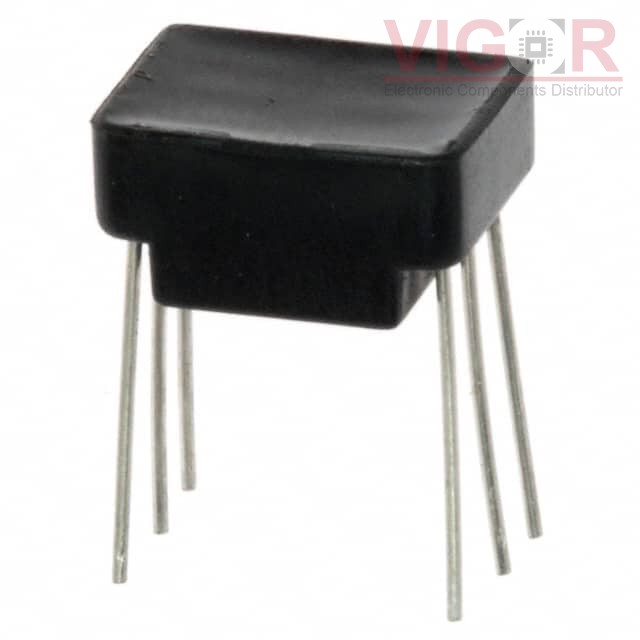

Image is for reference,
please contact us to get the real picture

Part No :

G506

Manufacturer
Tamura
Description
TRANSFORMER 2.0MH 2:1:1 PULSE
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Oct 13 - Oct 17 2025
DataSheet
G506 PDF
Availability
437 pieces
Unit Price
$11.16000

Current price of G506 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G506 Specifications
Type Description
Series:G5
Package:Tube
Part Status:Active
Transformer Type:Isolation and Data Interface (Encapsulated)
Inductance:2mH
ET (Volt-Time):16VµS
Turns Ratio - Primary:Secondary:2:1:1 Ter
Mounting Type:Through Hole
Size / Dimension:0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max):0.250" (6.35mm)
Operating Temperature:0°C ~ 70°C
