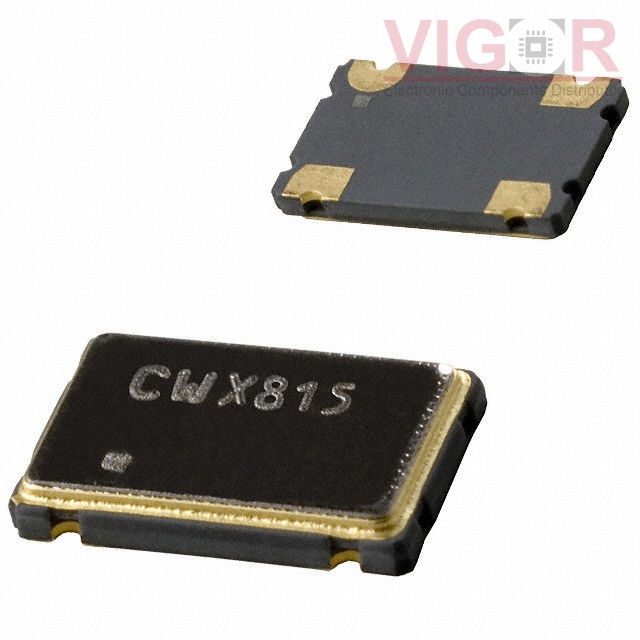

CWX815-3.6864M

Part No :: CWX815-3.6864M

Manufacturer: Connor Winfield

VIGOR # :: 2237547

Description: XTAL OSC XO 3.6864MHZ HCMOS SMD

Catalog: Oscillators

DataSheet: CWX815-3.6864M PDF

Country of origin: -

Date code: -

CWX815-3.6864M Specifications

Type	Description
Series:	CWX815
Package:	Tape & Reel (TR)
Part Status:	Active
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	3.6864 MHz
Function:	Enable/Disable
Output:	HCMOS
Voltage - Supply:	5V
Frequency Stability:	±25ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-20°C ~ 70°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	45mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):	0.051" (1.30mm)
