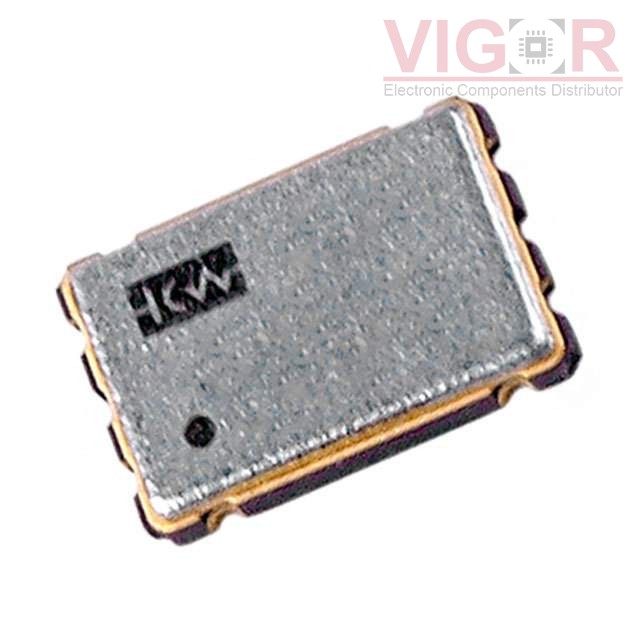

HSM613-114.285M

Part No :: HSM613-114.285M

Manufacturer: Connor Winfield

VIGOR # :: 2337808

Description: XTAL OSC XO 114.2850MHZ HCMOS

Catalog: Oscillators

DataSheet: HSM613-114.285M PDF

Country of origin: -

Date code: -

HSM613-114.285M Specifications

Type	Description
Series:	HSM6
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	114.285 MHz
Function:	Enable/Disable
Output:	HCMOS
Voltage - Supply:	3.3V
Frequency Stability:	±25ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	40mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.295" L x 0.197" W (7.50mm x 5.00mm)
Height - Seated (Max):	0.055" (1.40mm)
