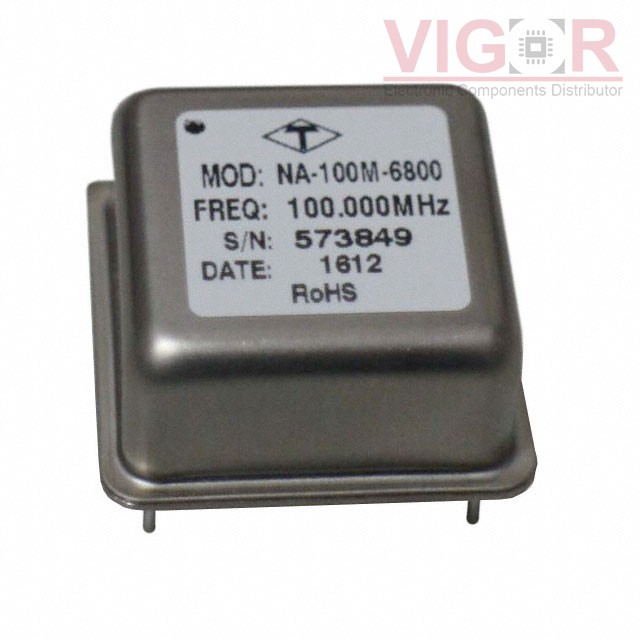

NA-100M-6812

Part No :: NA-100M-6812

Manufacturer: Taitien

VIGOR # :: 2339204

Description: XTAL OSC OCXO 100.0000MHZ SNWV

Catalog: Oscillators

DataSheet: NA-100M-6812 PDF

Country of origin: -

Date code: -

NA-100M-6812 Specifications

Type	Description
Series:	NA-100M-6800
Package:	Box
Part Status:	Active
Base Resonator:	Crystal
Type:	OCXO
Frequency:	100 MHz
Function:	-
Output:	Sine Wave
Voltage - Supply:	12V
Frequency Stability:	±50ppb
Absolute Pull Range (APR):	-
Operating Temperature:	-20°C ~ 70°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	380mA
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	8-DIP, 4 Leads (Half Size, Metal Can)
Size / Dimension:	1.015" L x 1.015" W (25.78mm x 25.78mm)
Height - Seated (Max):	0.500" (12.70mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5

Shipped from

HK warehouse

Expected Shipping Date

Jan 22 - Jan 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$883.98~~	~~$883.98~~
10	~~$855.05~~	~~$8 550.50~~

Current price of NA-100M-6812 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
