WO-3809X-15

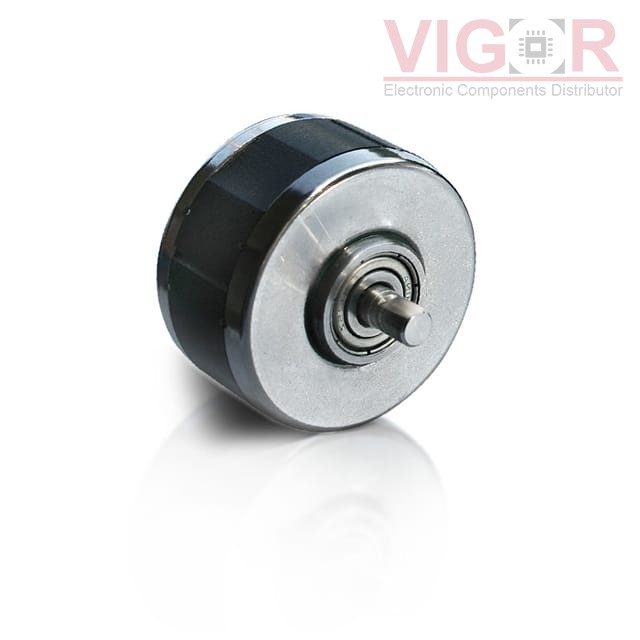

Image is for reference,
please contact us to get the real picture

Part No :: WO-3809X-15

Manufacturer: Lin Engineering

Description: STEPPER MOTOR

Catalog: Stepper Motors

DataSheet: WO-3809X-15 PDF

Availability: 38 pieces

Unit Price: ~~$34.93000~~

Current price of WO-3809X-15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WO-3809X-15 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	-
Coil Type:	Bipolar
Voltage - Rated:	24VDC
Current Rating (Amps):	300 mA
Steps per Revolution:	400
Step Angle:	0.9°
Accuracy:	-
Torque - Holding (oz-in / mNm):	6 / 42.37
Size / Dimension:	Round - 1.429" Dia (36.30mm)
NEMA Frame Size:	14
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.591" (15.00mm)
Mounting Hole Spacing:	-
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 50°C
Coil Resistance:	15.1 Ohms
Features:	Round Shaft
