QSH2818-32-07-006

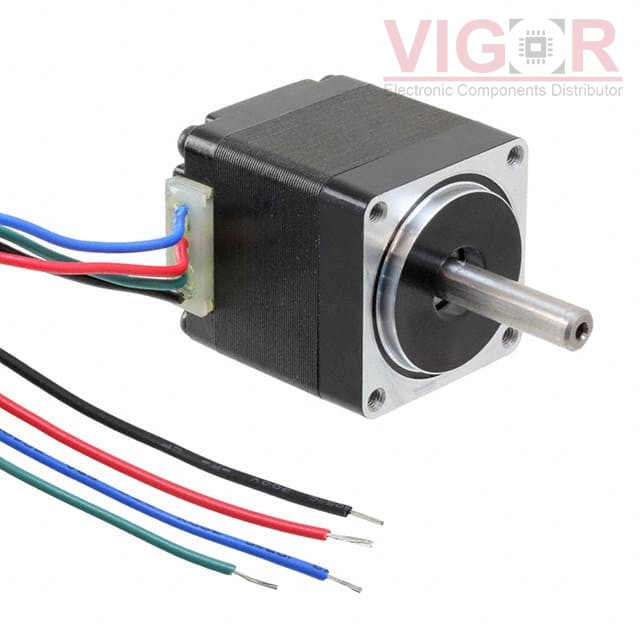

Product image
Product thumb
Part No :

QSH2818-32-07-006

Manufacturer
TRINAMIC Motion Control GmbH
VIGOR # :

2680462

Description
STEP MOTOR HYBRID BIPOLAR 3.8V
Catalog
Stepper Motors
DataSheet
QSH2818-32-07-006 PDF
Country of origin
-
Date code
-
ads
QSH2818-32-07-006 Specifications
Type Description
Series:QMot QSH2818
Package:Bulk
Part Status:Active
Type:Hybrid
Coil Type:Bipolar
Voltage - Rated:3.8VDC
Current Rating (Amps):670 mA
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±5%
Torque - Holding (oz-in / mNm):8.49 / 60
Size / Dimension:Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size:11
Diameter - Shaft:0.197" (5.00mm)
Length - Shaft and Bearing:0.787" (20.00mm)
Mounting Hole Spacing:0.905" (22.98mm)
Termination Style:Wire Leads
Operating Temperature:-20°C ~ 50°C
Coil Resistance:5.6 Ohms
Features:Flatted Shaft
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 233
Shipped from
HK warehouse
Expected Shipping Date
May 04 - May 08 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $37.9000 $37.90
10 $36.5892 $365.89
25 $35.9360 $898.40
100 $34.7597 $3 475.97
250 $33.9757 $8 493.92

Current price of QSH2818-32-07-006 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

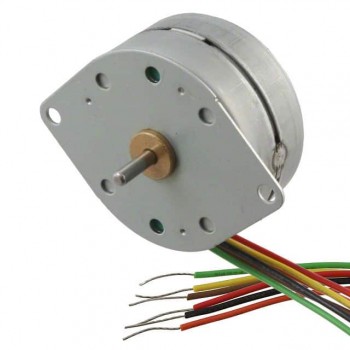

42M048C1U
