NEMA23-22-02PD-AMT112S

NEMA23-22-02PD-AMT112S

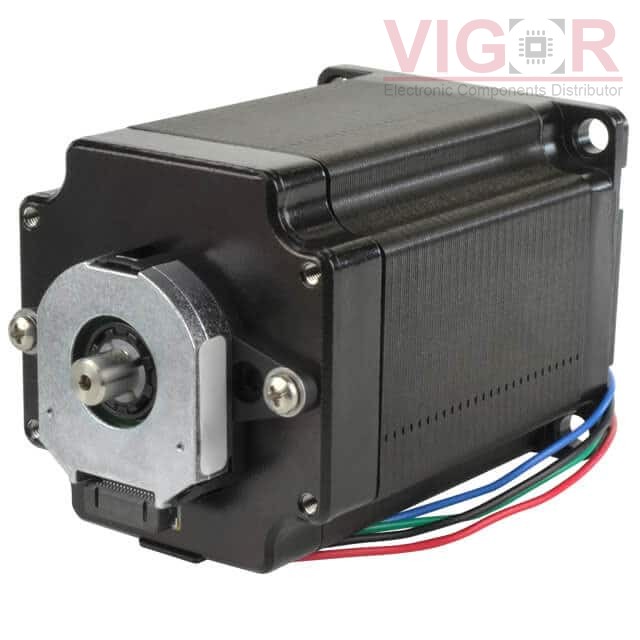

Image is for reference,
please contact us to get the real picture

Part No :

NEMA23-22-02PD-AMT112S

Manufacturer
CUI Devices
Description
STEPPER MOTOR W/ INCREMENTAL ENC
Catalog
Stepper Motors
Shipped from
HK warehouse
Expected Shipping Date
Nov 01 - Nov 05 2025
DataSheet
NEMA23-22-02PD-AMT112S PDF
Availability
6 pieces
Unit Price
$128.07000

Current price of NEMA23-22-02PD-AMT112S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NEMA23-22-02PD-AMT112S Specifications
Type Description
Series:NEMA23-AMT112S
Package:Box
Part Status:Active
Type:-
Coil Type:Bipolar
Voltage - Rated:24 ~ 80VDC
Current Rating (Amps):4.2 A
Steps per Revolution:200
Step Angle:1.8°
Accuracy:±0.2%
Torque - Holding (oz-in / mNm):170 / 1200.46
Size / Dimension:Square - 2.252" x 2.252" (57.20mm x 57.20mm)
NEMA Frame Size:23
Diameter - Shaft:0.250" (6.35mm)
Length - Shaft and Bearing:0.811" (20.60mm)
Mounting Hole Spacing:1.819" (46.20mm)
Termination Style:Connector
Operating Temperature:-20°C ~ 50°C
Coil Resistance:0.5 Ohms
Features:Integrated Encoder, Flatted Shaft
