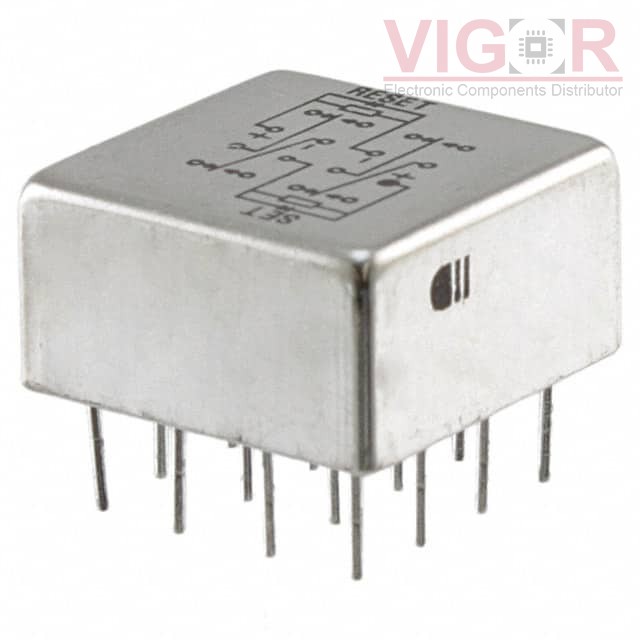

3SBM1071A2

3SBM1071A2

Image is for reference,
please contact us to get the real picture

Part No :

3SBM1071A2

Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOS 4PDT 2A 26.5VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Oct 16 - Oct 20 2025
DataSheet
3SBM1071A2 PDF
Availability
0 pieces
Unit Price
$1090.66600

Current price of 3SBM1071A2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3SBM1071A2 Specifications
Type Description
Series:Military, MIL-R-39016/31, 3SBM, CII
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:26.5VDC
Contact Form:4PDT (4 Form C)
Contact Rating (Current):2 A
Switching Voltage:28VDC - Nom
Coil Current:27.2 mA
Coil Type:Latching, Dual Coil
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:13.5 VDC
Must Release Voltage:-
Operate Time:4 ms
Release Time:-
Operating Temperature:-65°C ~ 125°C
Contact Material:-
Relay Type:General Purpose
