EDS12SGRNTU04Q

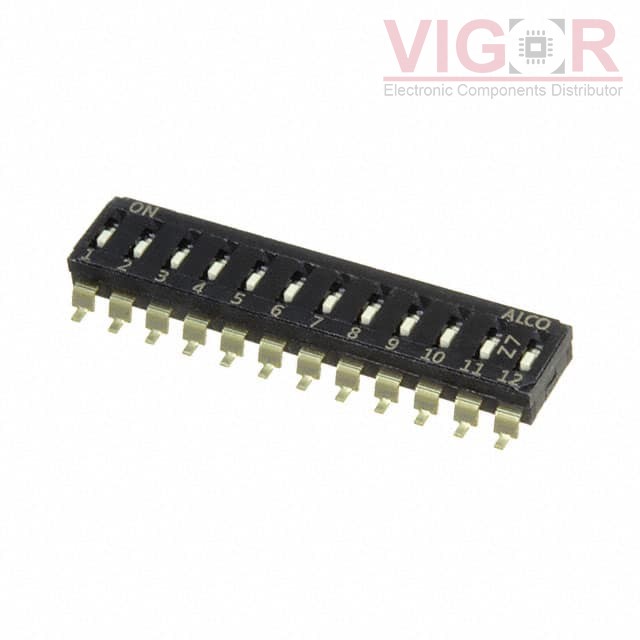

Product image
Product thumb
Part No :

EDS12SGRNTU04Q

Manufacturer
TE Connectivity ALCOSWITCH Switches
VIGOR # :

2702216

Description
END STACK DIP 12P G RECESS TUBE
Catalog
DIP Switches
DataSheet
EDS12SGRNTU04Q PDF
Country of origin
-
Date code
-
ads
EDS12SGRNTU04Q Specifications
Type Description
Series:EDS
Package:Tube
Part Status:Active
Circuit:SPST
Number of Positions:12
Current Rating (Amps):25mA
Voltage Rating:24VDC
Actuator Type:Slide (Standard)
Actuator Level:Flush, Recessed
Contact Material:Copper Alloy
Contact Finish:Gold
Height Above Board:0.134" (3.40mm)
Mounting Type:Surface Mount
Termination Style:Gull Wing
Pitch:0.100" (2.54mm), Full
Washable:No
Features:-
Operating Temperature:-20°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 948
Shipped from
HK warehouse
Expected Shipping Date
Jan 13 - Jan 17 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.52 $2.52
15 $2.44 $36.66
30 $2.32 $69.55
60 $2.17 $130.03
105 $2.12 $222.26
255 $1.81 $462.67
510 $1.76 $899.63
1005 $1.51 $1 519.54
5010 $1.39 $6 943.81

Current price of EDS12SGRNTU04Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
