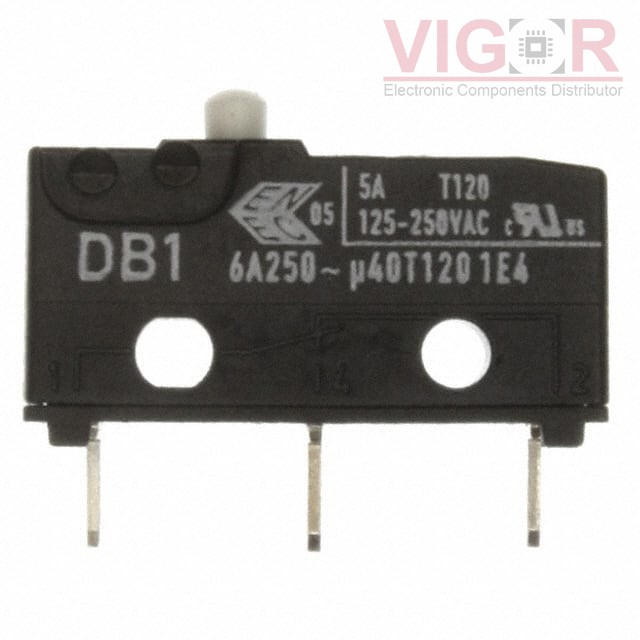

DB1C-C1AA

Part No :: DB1C-C1AA

Manufacturer: Waldom Electronics

VIGOR # :: 2715356

Description: SWITCH SNAP ACTION SPDT 5A 125V

Catalog: Snap Action, Limit Switches

DataSheet: DB1C-C1AA PDF

Country of origin: -

Date code: -

DB1C-C1AA Specifications

Type	Description
Series:	DB
Package:	Bulk
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	5A (AC), 1A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	48 V
Actuator Type:	Round (Pin Plunger)
Mounting Type:	Through Hole
Termination Style:	PC Pin
Ingress Protection:	IP50 - Dust Protected
Features:	-
Operating Force:	150gf
Release Force:	-
Pretravel:	0.040" (1.0mm)
Differential Travel:	0.004" (0.1mm)
Overtravel:	0.025" (0.6mm)
Operating Temperature:	-40°C ~ 120°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 124

Shipped from

HK warehouse

Expected Shipping Date

Jun 18 - Jun 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.5100~~	~~$1.51~~
1200	~~$1.3195~~	~~$1 583.40~~

Current price of DB1C-C1AA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

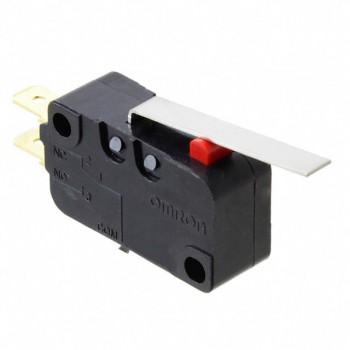

D3V-165-1C4

SWITCH SNAP ACTION SPDT 16A 250V

V7-1A17D8-048

SWITCH SNAP ACTION SPDT 5A 125V

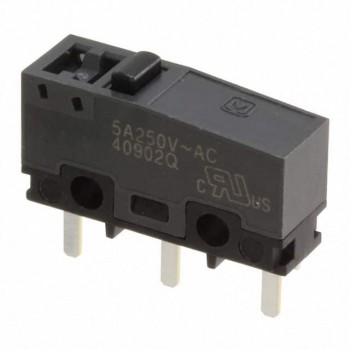

AVM35059
