IPC0023-S

Part No :: IPC0023-S

Manufacturer: Chip Quik, Inc.

VIGOR # :: 2880721

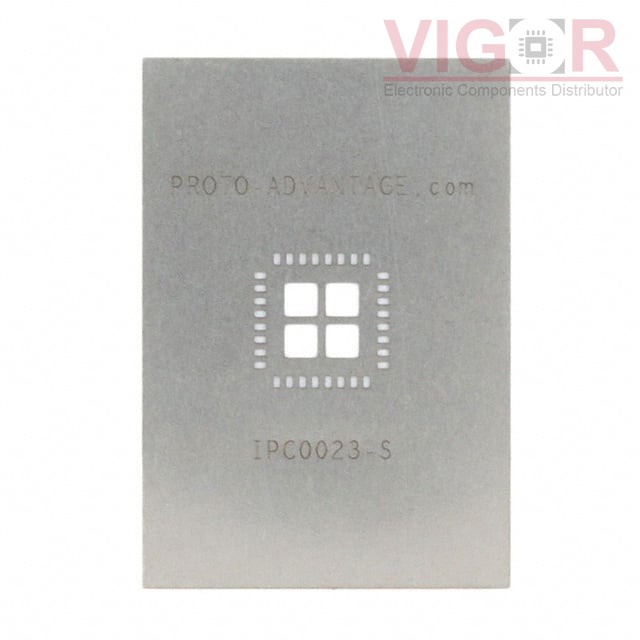

Description: QFN-32 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: IPC0023-S PDF

Country of origin: -

Date code: -

IPC0023-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	QFN/LFCSP
Number of Positions:	32
Pitch:	0.031" (0.80mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.315" L x 0.315" W (8.00mm x 8.00mm)
Thermal Center Pad:	0.228" L x 0.228" W (5.80mm x 5.80mm)
Material:	Stainless Steel
