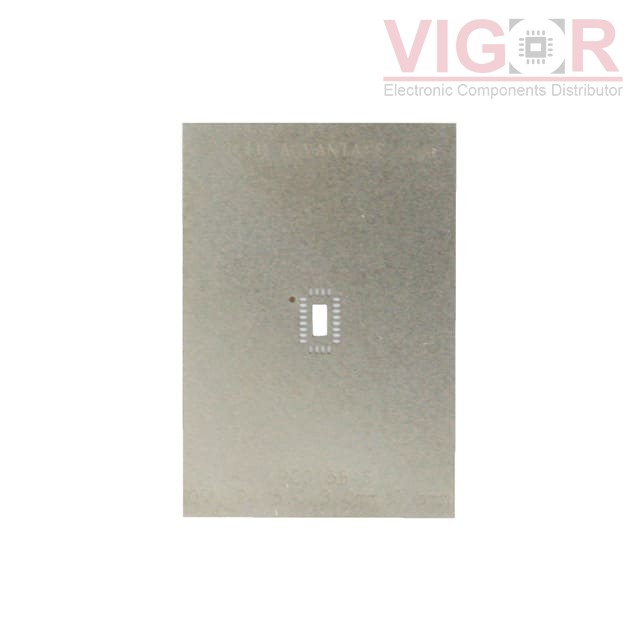

IPC0158-S

Product image
Product thumb
Part No :

IPC0158-S

Manufacturer
Chip Quik, Inc.
VIGOR # :

2880768

Description
QFN-24/LFCSP-24 (0.5MM PITCH, 5X
Catalog
Solder Stencils, Templates
DataSheet
IPC0158-S PDF
Country of origin
-
Date code
-
ads
IPC0158-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:QFN/LFCSP
Number of Positions:24
Pitch:0.020" (0.50mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.197" L x 0.118" W (5.00mm x 3.00mm)
Thermal Center Pad:0.144" L x 0.065" W (3.65mm x 1.65mm)
Material:Stainless Steel
