IPC0109-S

Part No :: IPC0109-S

Manufacturer: Chip Quik, Inc.

VIGOR # :: 2880797

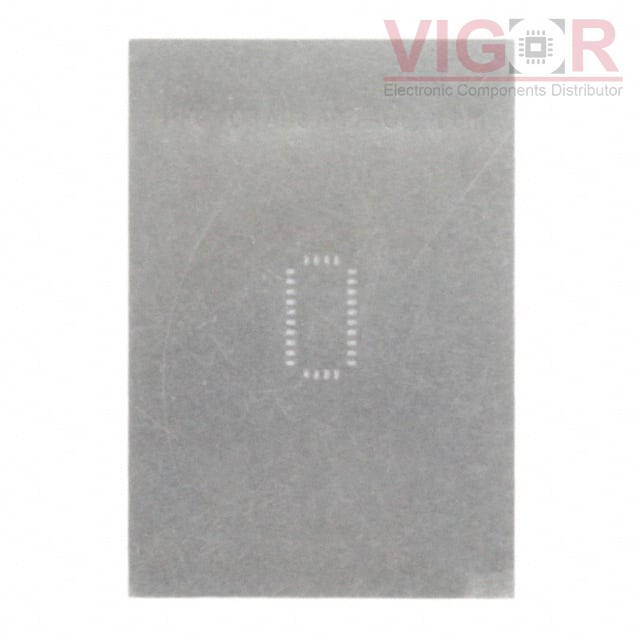

Description: LGA-28 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: IPC0109-S PDF

Country of origin: -

Date code: -

IPC0109-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	LGA
Number of Positions:	28
Pitch:	0.024" (0.60mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.295" L x 0.173" W (7.50mm x 4.40mm)
Thermal Center Pad:	-
Material:	Stainless Steel
