PA0185-S

Part No :: PA0185-S

Manufacturer: Chip Quik, Inc.

VIGOR # :: 2880804

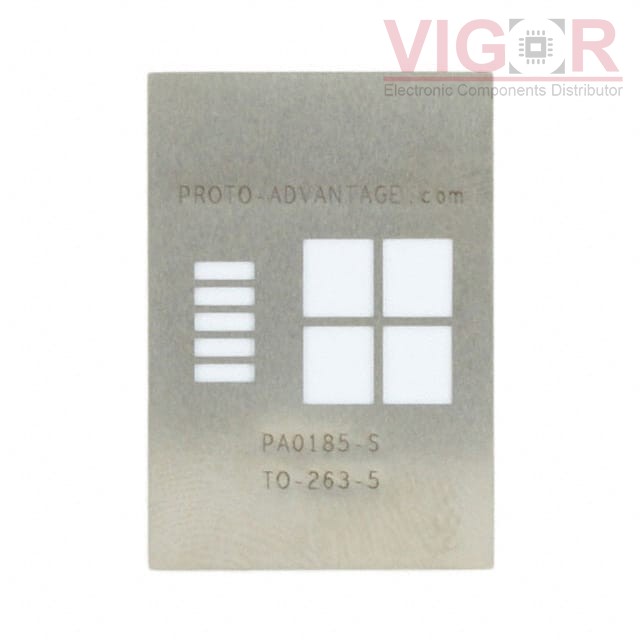

Description: TO-263-5 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: PA0185-S PDF

Country of origin: -

Date code: -

PA0185-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	TO/DDPAK
Number of Positions:	5
Pitch:	0.067" (1.70mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.400" L x 0.390" W (10.16mm x 9.91mm)
Thermal Center Pad:	0.433" L x 0.394" W (11.00mm x 10.00mm)
Material:	Stainless Steel
