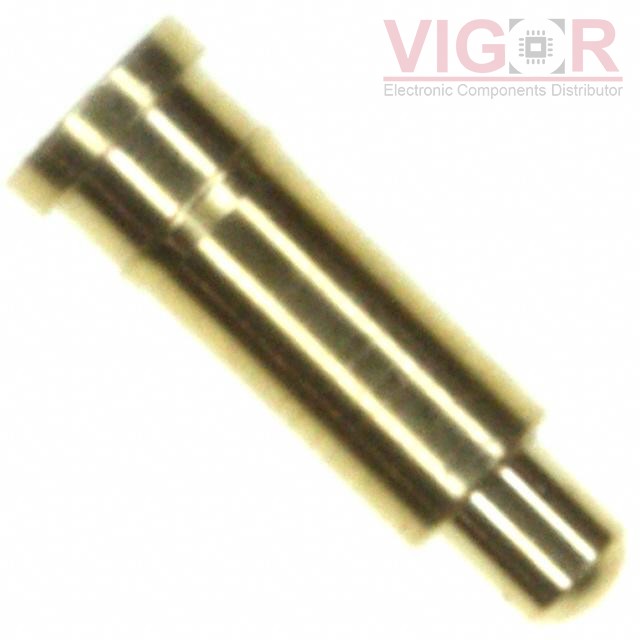

0936-0-15-20-75-14-11-0

Part No :: 0936-0-15-20-75-14-11-0

Manufacturer: Mill-Max

Description: CONTACT SPRING LOADED SMD GOLD

Catalog: Contacts, Spring Loaded (Pogo Pins), and Pressure

DataSheet: 0936-0-15-20-75-14-11-0 PDF

Availability: 4722 pieces

Current price of 0936-0-15-20-75-14-11-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0936-0-15-20-75-14-11-0 Specifications

Type	Description
Series:	0936
Package:	Bulk
Part Status:	Active
Contact Type:	Sleeve & Plunger (Pogo Pins)
Mounting Type:	Surface Mount
Maximum Working Height:	0.217" (5.51mm)
Recommended Working Height:	0.191" (4.86mm)
Minimum Working Height:	0.167" (4.23mm)
Pad Layout Dimension:	Circular - 0.072" (1.83mm)
Operating Force - Initial:	25gf
Operating Force - Mid Compression:	60gf
Plunger Size:	0.042" (1.07mm) Dia
Features:	-
Mating Cycles:	1000000
Contact Material:	Copper Alloy
Contact Finish:	Gold
Contact Finish Thickness:	20.0µin (0.51µm)
