CI2503P1H00-LF

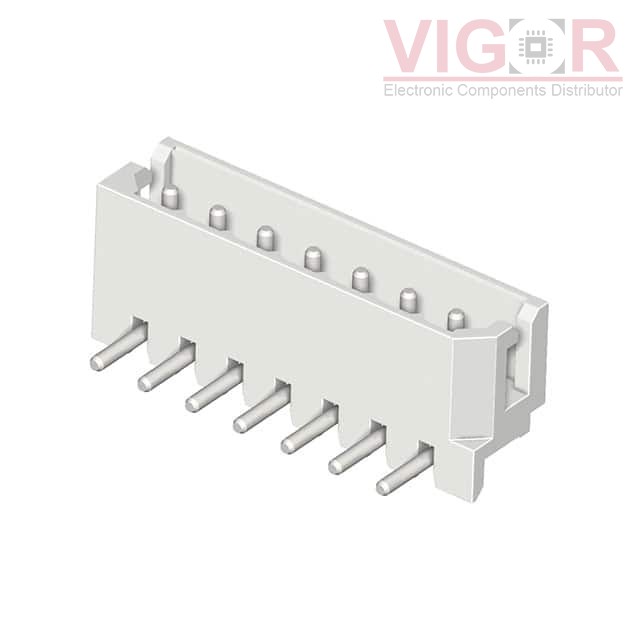

Image is for reference,
please contact us to get the real picture

Part No :: CI2503P1H00-LF

Manufacturer: CviLux

Description: 3 POS 2.50MM (.098) WIRE TO BOAR

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: CI2503P1H00-LF PDF

Availability: 6000 pieces

Unit Price: ~~$0.19000~~

Current price of CI2503P1H00-LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CI2503P1H00-LF Specifications

Type	Description
Series:	CI25
Package:	Bag
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.134" (3.40mm)
Overall Contact Length:	-
Insulation Height:	0.193" (4.90mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	120.0µin (3.05µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA46), Nylon 4/6
Features:	-
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Ivory
Current Rating (Amps):	3A
Voltage Rating:	250VAC
