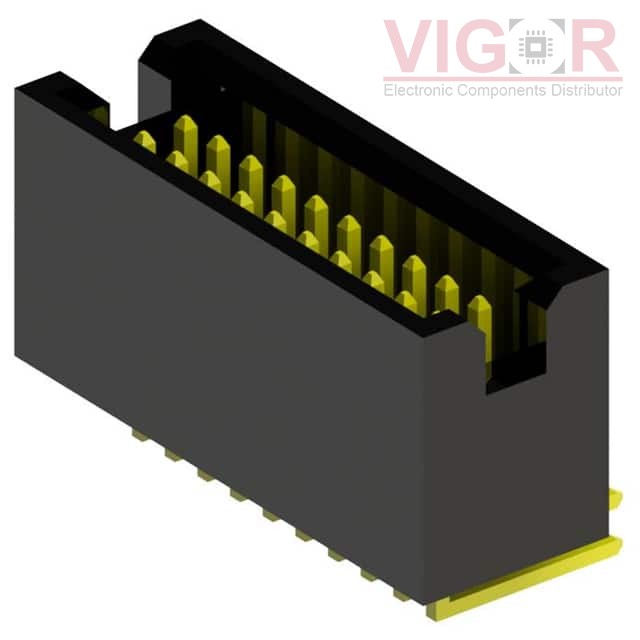

PTSHS-505-D-02-RA-T-LF

Part No :: PTSHS-505-D-02-RA-T-LF

Manufacturer: Major League Electronics

VIGOR # :: 3054665

Description: POLARIZED TERMINAL STRIP

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: PTSHS-505-D-02-RA-T-LF PDF

Country of origin: -

Date code: -

PTSHS-505-D-02-RA-T-LF Specifications

Type	Description
Series:	PTSHS-5-RA
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.083" (2.11mm)
Overall Contact Length:	-
Insulation Height:	0.222" (5.64mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	-
