AWHW 24A-0202-T

AWHW 24A-0202-T

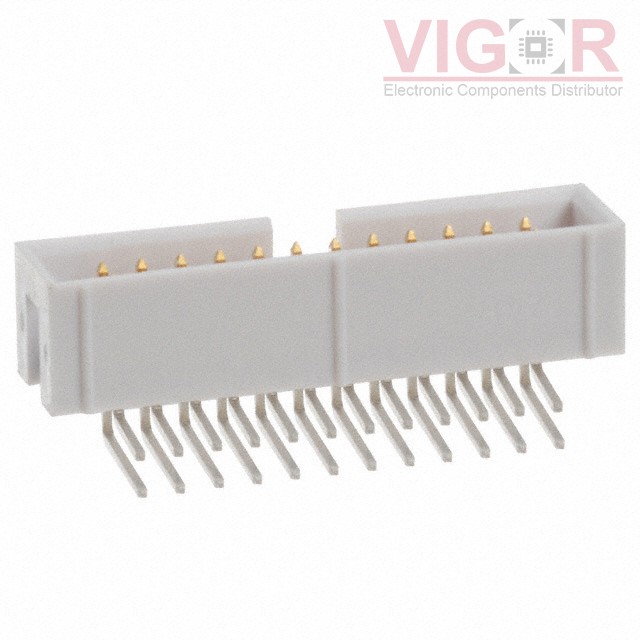

Image is for reference,
please contact us to get the real picture

Part No :

AWHW 24A-0202-T

Manufacturer
ASSMANN WSW Components
Description
CONN HEADER R/A 24POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 11 - Oct 15 2025
DataSheet
AWHW 24A-0202-T PDF
Availability
51 pieces
Unit Price
$1.41000

Current price of AWHW 24A-0202-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AWHW 24A-0202-T Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.224" (5.70mm)
Contact Length - Post:0.124" (3.15mm)
Overall Contact Length:-
Insulation Height:0.352" (8.95mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Keying Slot
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Gray
Current Rating (Amps):3A
Voltage Rating:-
