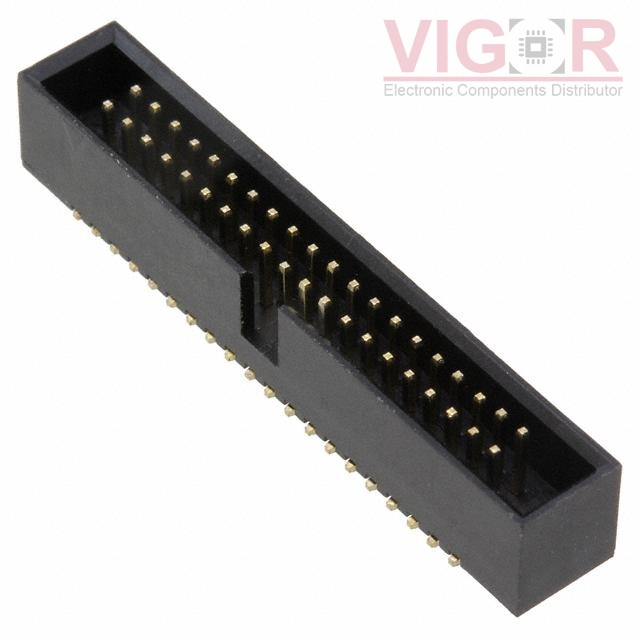

3220-40-0300-00

Product image
Product thumb
Part No :

3220-40-0300-00

Manufacturer
CnC Tech
VIGOR # :

3079553

Description
CONN HEADER SMD 40POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
3220-40-0300-00 PDF
Country of origin
-
Date code
-
ads
3220-40-0300-00 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.213" (5.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:Keying Slot
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):1A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 4491
Shipped from
HK warehouse
Expected Shipping Date
Apr 28 - May 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.2600 $2.26
10 $2.0522 $20.52
100 $1.7586 $175.86
500 $1.4655 $732.74
1260 $1.2561 $1 582.71
5040 $1.1138 $5 613.35

Current price of 3220-40-0300-00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

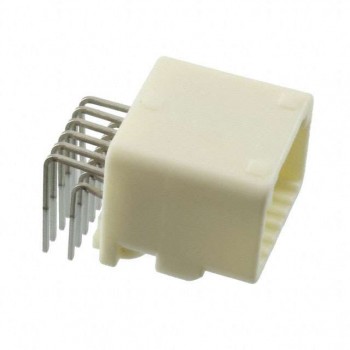

1318772-2

1318772-2

CONN HEADER R/A 12POS 2.2MM

TSW-138-23-S-D

TSW-138-23-S-D

CONN HEADER VERT 76POS 2.54MM

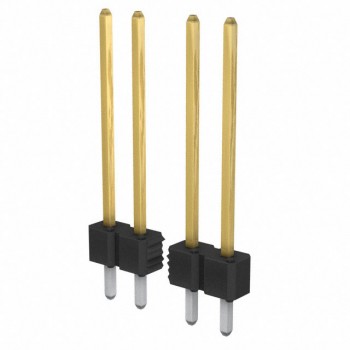

77311-120-36LF
