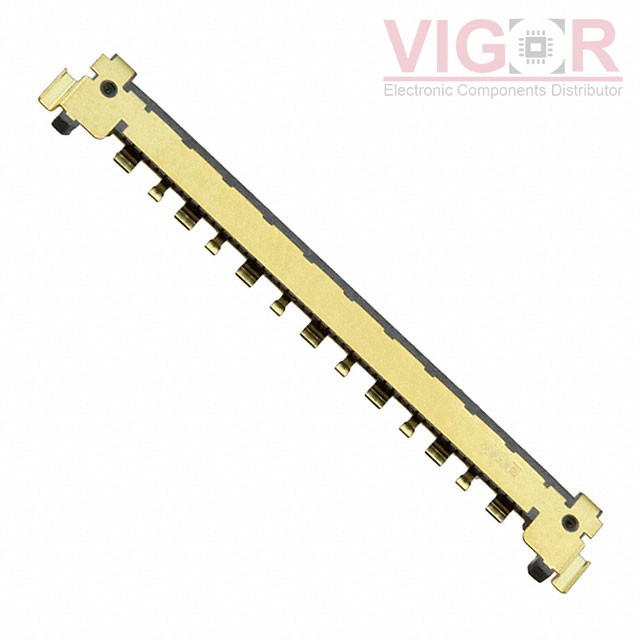

HJ1S050HA1R6000

Part No :: HJ1S050HA1R6000

Manufacturer: JAE Electronics

VIGOR # :: 3110145

Description: CONN RCPT 50P 0.016 GOLD SMD R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: HJ1S050HA1R6000 PDF

Current price of HJ1S050HA1R6000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HJ1S050HA1R6000 Specifications

Type	Description
Series:	HJ1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Outer Shroud Contact
Style:	Board to Cable/Wire
Number of Positions:	50
Number of Positions Loaded:	All
Pitch - Mating:	0.016" (0.40mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.035" (0.90mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	-
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Shielded, Solder Retention
Current Rating (Amps):	1A per Contact
Voltage Rating:	100V
