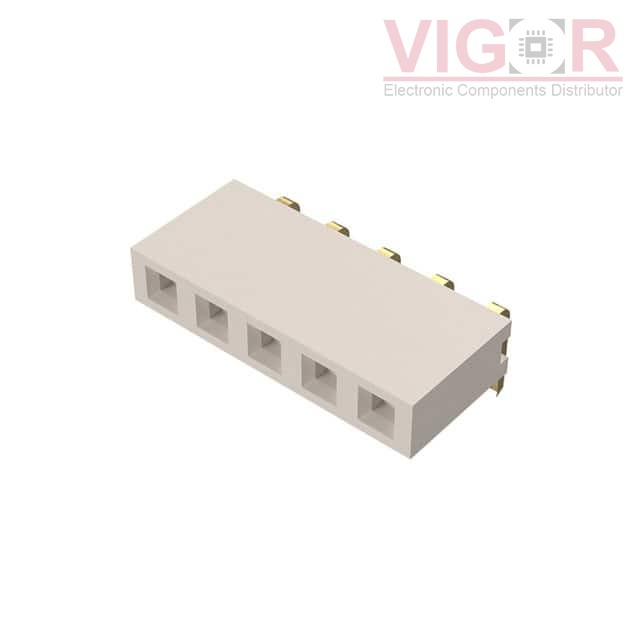

BG302-05-A-L-G

Image is for reference,
please contact us to get the real picture

Part No :: BG302-05-A-L-G

Manufacturer: Global Connector Technology, Limited (GCT)

Description: 5W, 2.54MM PTH SOCKET, SIL, TH,

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: BG302-05-A-L-G PDF

Availability: 1343 pieces

Unit Price: ~~$0.64000~~

Current price of BG302-05-A-L-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BG302-05-A-L-G Specifications

Type	Description
Series:	BG302
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board
Number of Positions:	5
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	Natural
Insulation Height:	0.098" (2.50mm)
Contact Length - Post:	0.126" (3.20mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A per Contact
Voltage Rating:	-
