09-8028-1-05

Part No :: 09-8028-1-05

Manufacturer: Concord Electronics

VIGOR # :: 3194708

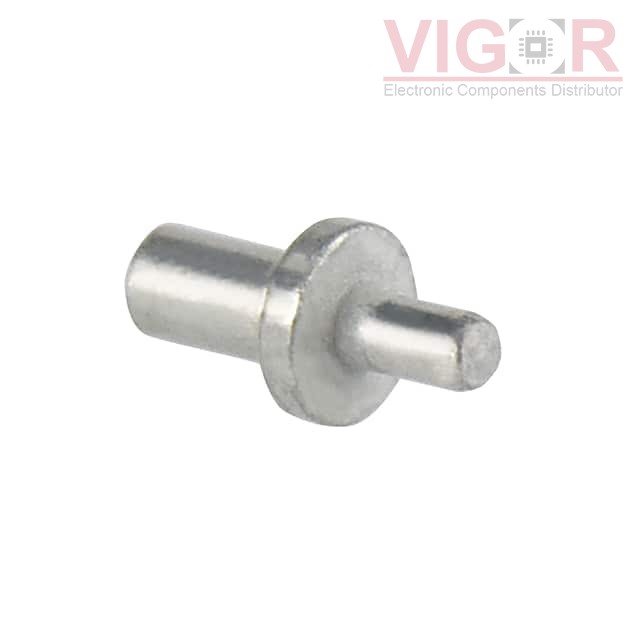

Description: NON-INSULATED PC PIN TERMINAL

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 09-8028-1-05 PDF

Country of origin: -

Date code: -

09-8028-1-05 Specifications

Type	Description
Series:	09-8028
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	0.018" (0.46mm) Dia
Length - Above Flange:	0.050" (1.27mm)
Length - Below Flange:	0.051" (1.30mm)
Length - Overall:	0.101" (2.57mm)
Flange Diameter:	-
Mounting Hole Diameter:	0.030" ~ 0.032" (0.76mm ~ 0.81mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.031" (0.79mm)
Contact Material:	Brass
Contact Finish:	Electro-Solder
Contact Finish Thickness:	300.0µin (7.62µm)
