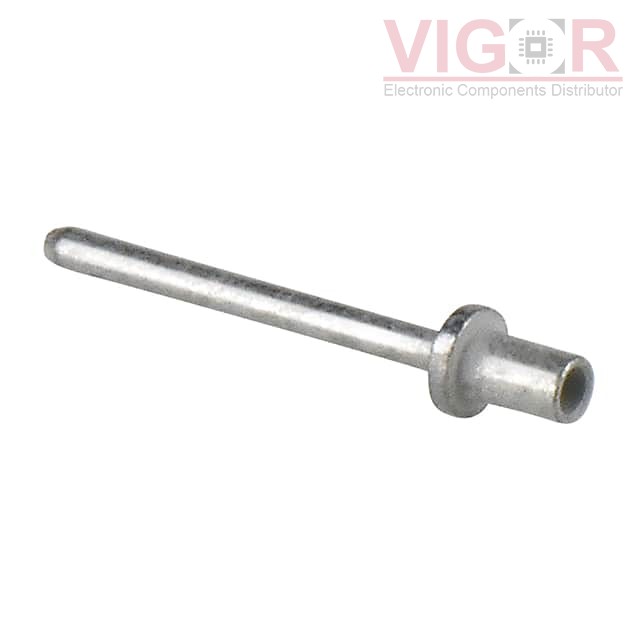

Part No :: 09-8181-1-05

Manufacturer: Concord Electronics

Description: NON-INSULATED PC PIN TERMINAL

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 09-8181-1-05 PDF

Availability: 10000 pieces

Unit Price: ~~$0.53400~~

Current price of 09-8181-1-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

09-8181-1-05 Specifications

Type	Description
Series:	09-8181
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.020" (0.51mm) Dia
Pin Size - Below Flange:	0.020" (0.51mm) Dia
Length - Above Flange:	0.215" (5.46mm)
Length - Below Flange:	0.084" (2.13mm)
Length - Overall:	0.276" (7.01mm)
Flange Diameter:	-
Mounting Hole Diameter:	0.034" ~ 0.036" (0.86mm ~ 0.91mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.031" (0.79mm)
Contact Material:	Brass
Contact Finish:	Electro-Solder
Contact Finish Thickness:	300.0µin (7.62µm)
