10-8017-1-0302

10-8017-1-0302

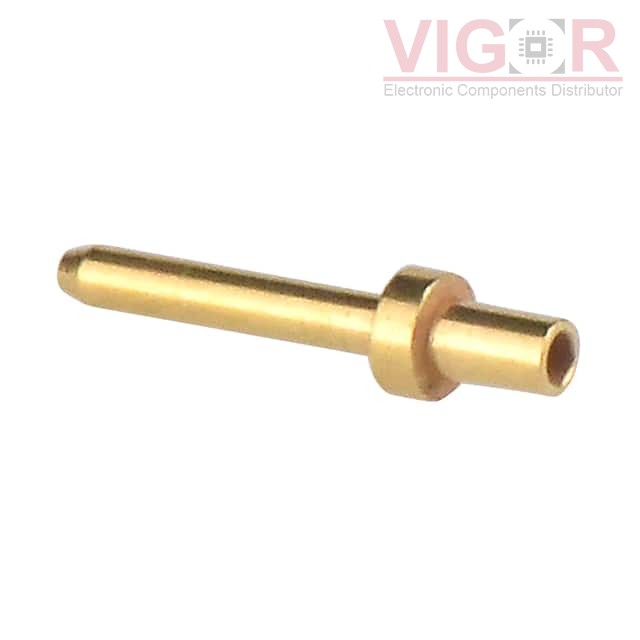

Image is for reference,
please contact us to get the real picture

Part No :

10-8017-1-0302

Manufacturer
Concord Electronics
Description
NON-INSULATED PC PIN TERMINAL
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Sep 29 - Oct 03 2025
DataSheet
10-8017-1-0302 PDF
Availability
9890 pieces
Unit Price
$0.73800

Current price of 10-8017-1-0302 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10-8017-1-0302 Specifications
Type Description
Series:10-8017
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.025" (0.64mm) Dia
Pin Size - Below Flange:0.031" (0.79mm) Dia
Length - Above Flange:0.150" (3.81mm)
Length - Below Flange:0.051" (1.30mm)
Length - Overall:0.221" (5.61mm)
Flange Diameter:0.050" (1.27mm)
Mounting Hole Diameter:0.035" (0.89mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.031" (0.79mm)
Contact Material:Brass
Contact Finish:-
Contact Finish Thickness:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 5-103577-3

5-103577-3

CONN PC PIN SQUARE 0.025 GOLD

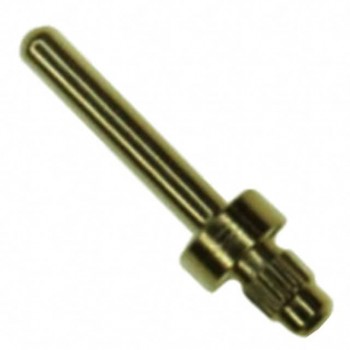

HOT 3157-0-00-15-00-00-03-0
