09-8185-2-03

Part No :: 09-8185-2-03

Manufacturer: Concord Electronics

VIGOR # :: 3194987

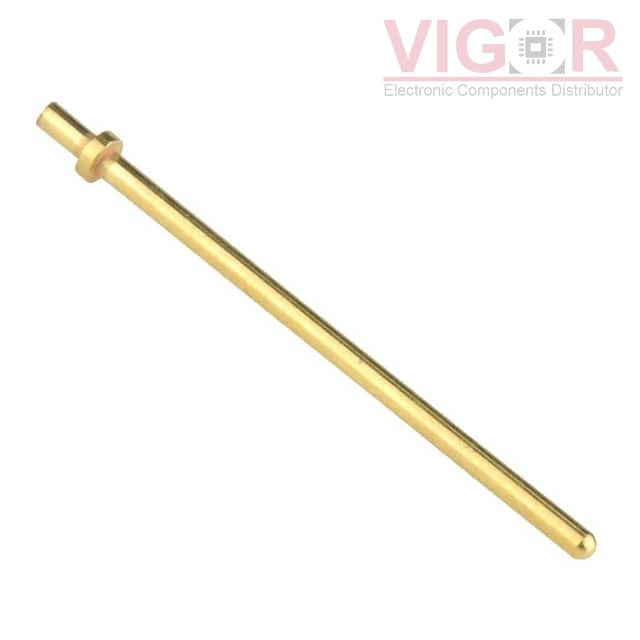

Description: NON-INSULATED PC PIN TERMINAL

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 09-8185-2-03 PDF

Country of origin: -

Date code: -

09-8185-2-03 Specifications

Type	Description
Series:	09-8185
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	0.025" (0.64mm) Dia
Length - Above Flange:	-
Length - Below Flange:	-
Length - Overall:	0.927" (23.55mm)
Flange Diameter:	-
Mounting Hole Diameter:	0.042" ~ 0.044" (1.07mm ~ 1.12mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
