09-8631-2-05

Part No :: 09-8631-2-05

Manufacturer: Concord Electronics

VIGOR # :: 3195124

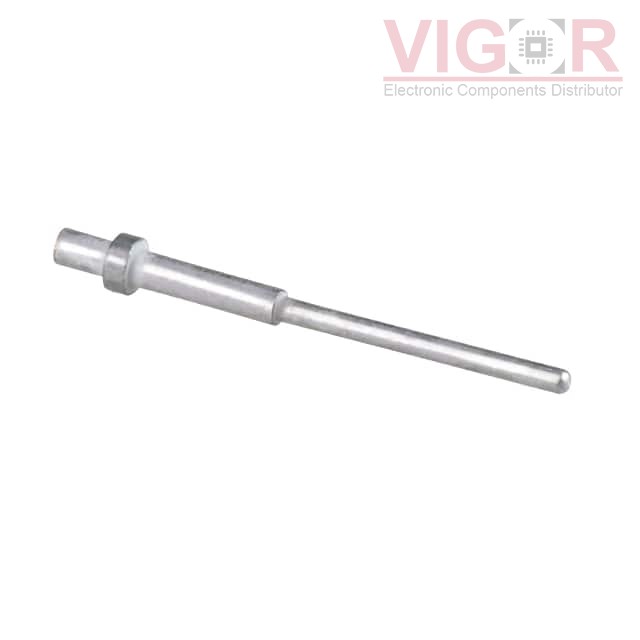

Description: NON-INSULATED PC PIN TERMINAL

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 09-8631-2-05 PDF

Country of origin: -

Date code: -

09-8631-2-05 Specifications

Type	Description
Series:	09-8631
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Single End
Pin Size - Above Flange:	0.032" (0.81mm) Dia
Pin Size - Below Flange:	0.032" (0.81mm) Dia
Length - Above Flange:	-
Length - Below Flange:	-
Length - Overall:	0.735" (18.67mm)
Flange Diameter:	0.078" (1.98mm)
Mounting Hole Diameter:	0.054" ~ 0.056" (1.37mm ~ 1.42mm)
Mounting Type:	Through Hole
Termination:	Swage
Insulation:	Non-Insulated
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Electro-Solder
Contact Finish Thickness:	300.0µin (7.62µm)
