1110-05-0319

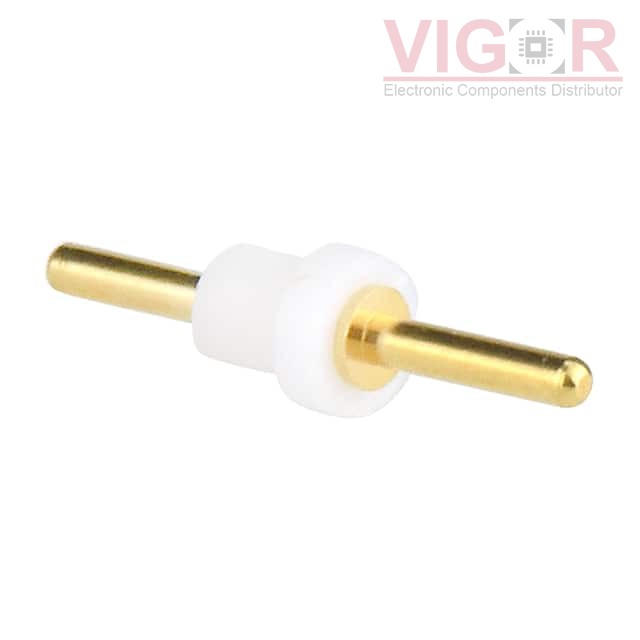

Image is for reference,
please contact us to get the real picture

Part No :: 1110-05-0319

Manufacturer: Concord Electronics

Description: PTFE INSULATED FEED THRU (PIN/PI

Catalog: Terminals - PC Pin, Single Post Connectors

DataSheet: 1110-05-0319 PDF

Availability: 2500 pieces

Unit Price: ~~$1.87500~~

Current price of 1110-05-0319 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1110-05-0319 Specifications

Type	Description
Series:	1110
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Double End
Pin Size - Above Flange:	0.040" (1.02mm) Dia
Pin Size - Below Flange:	0.040" (1.02mm) Dia
Length - Above Flange:	0.210" (5.33mm)
Length - Below Flange:	0.265" (6.73mm)
Length - Overall:	0.515" (13.08mm)
Flange Diameter:	0.125" (3.18mm)
Mounting Hole Diameter:	0.086" ~ 0.110" (2.18mm ~ 2.79mm)
Mounting Type:	Press Fit
Termination:	Press-Fit
Insulation:	Insulated
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
